AS5600 Magnetic Rotary Encoder Module PCB
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product

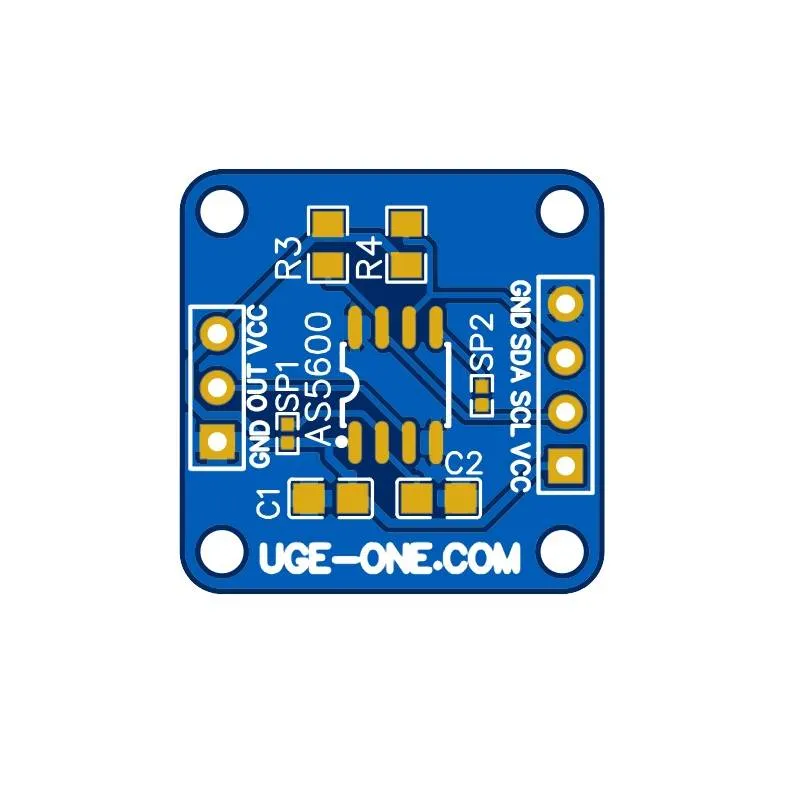

Printed circuit board for building a magnetic rotary encoder based on the AS5600 12-bit angle sensor. The chip reads the angle of a diametrically magnetized magnet placed above it, which makes the module useful for knob position, motor shaft feedback and rotary measurement in robotics and hobby projects.
Specifications
- Chip
- AS5600
- Resolution
- 12-bit (4096 positions per revolution)
- Interface
- I2C, PWM and analog output
- I2C address
- 0x36
- Magnet
- Diametrically magnetized disc magnet
Frequently asked questions
Which magnet do I need?
The AS5600 needs a diametrically magnetized (two-pole) disc magnet, commonly 6 mm in diameter, centred above the chip on the rotating shaft. Use the air gap given in the AS5600 datasheet.
How do I connect it to a microcontroller?
Connect power, ground, SDA and SCL to your board. The AS5600 I2C address is 0x36, so make sure no other device on the bus uses the same address. Match the logic level of the module to your controller.
