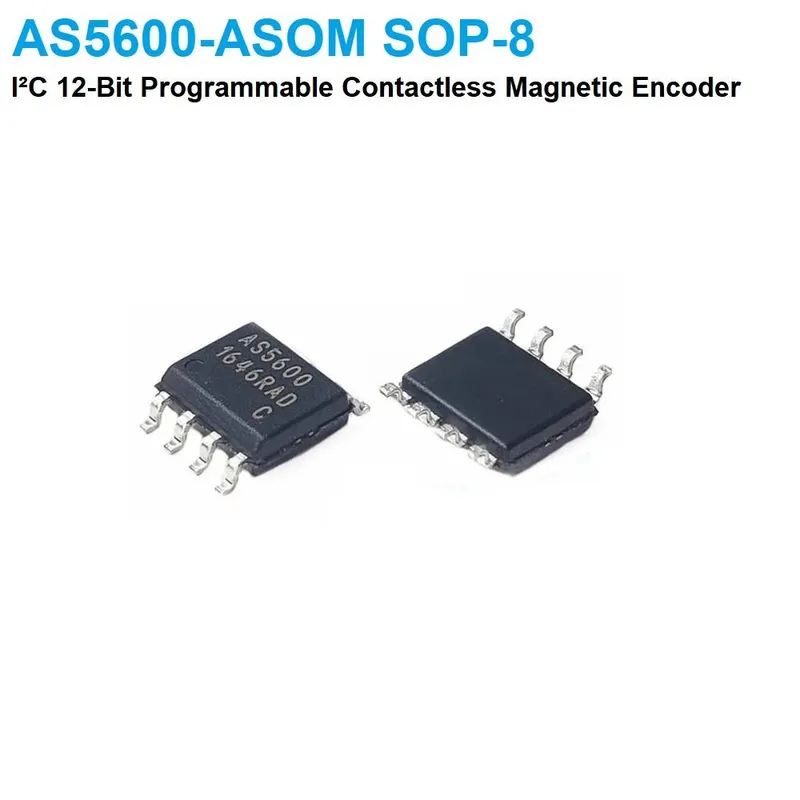

AS5600 12-Bit Programmable Contactless Magnetic Encoder SOP8
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGECheapest | AS5600 12-Bit Programmable Contactless Magnetic Encoder SOP8 | 175 EGP | View in store |
 Microohm | AS5600 Magnetic Encoder – 12-bit Rotary Sensor | 350 EGP500 | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 175 EGP
About this product
The AS5600 is a contactless magnetic rotary position sensor that measures the angle of a diametrically magnetized magnet over a full 0–360° range at 12-bit resolution. It reports the angle over I²C and also provides analog and PWM outputs. It is used for knob and dial position, motor shaft feedback, joysticks and angle measurement in robotics and maker projects.
Specifications
- Resolution
- 12-bit (4096 steps)
- Angle range
- 0–360°
- Interface
- I²C, analog, PWM
- Supply voltage
- 3.3–5 V
- Package
- SOP8
- I²C address
- 0x36
Frequently asked questions
What is the price of AS5600 12-Bit Programmable Contactless Magnetic Encoder SOP8 in Egypt?
AS5600 12-Bit Programmable Contactless Magnetic Encoder SOP8 currently costs between 175 and 350 EGP across 2 offers in Egypt.
Where can I buy AS5600 12-Bit Programmable Contactless Magnetic Encoder SOP8 in Egypt?
AS5600 12-Bit Programmable Contactless Magnetic Encoder SOP8 is available from UGE and Microohm. Compare the offers above to find the best price.
Which magnet do I need with the AS5600?
The AS5600 needs a diametrically magnetized magnet, meaning its poles are across the diameter, mounted on the rotating shaft and centered above the chip. A small disc magnet placed at the recommended distance from the package works well.
How do I connect it to an Arduino or ESP32?
Connect VCC, GND, SDA and SCL. The default I²C address is 0x36. Boards such as ESP32 work at 3.3 V logic, so confirm that the module's I²C voltage matches your board's logic level before connecting.
