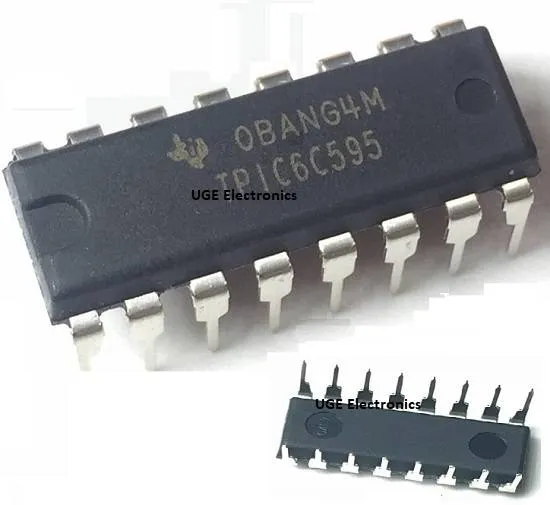

TPIC6C595 8-Bit Shift Register DIP, 100 mA per Output
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
An 8-bit serial-in, parallel-out shift register with power outputs rated at 100 mA per channel, used to expand a microcontroller's output pins for LEDs, relays, and other loads. It operates from 4.5 V to 5.5 V and includes enable/shutdown and thermal shutdown features. The DIP package suits breadboard and prototype use.
Specifications
- Channels
- 8
- Supply voltage (Vin)
- 4.5 V to 5.5 V
- Max output voltage (Vout)
- 33 V
- LED current per channel
- 100 mA
- Operating temperature
- -40 °C to 125 °C
- Features
- Enable/shutdown, thermal shutdown
Frequently asked questions
Can it drive a relay or inductive load directly?
Each channel is rated for 100 mA with a maximum output voltage of 33 V. Inductive loads such as relays and motors usually need a flyback protection diode, and you should check the datasheet for the exact clamping details.
What supply voltage should I use?
The supply range is 4.5 V to 5.5 V, so a regulated 5 V supply is the usual choice. Connect the outputs to your loads with the current limit of 100 mA per channel in mind.
