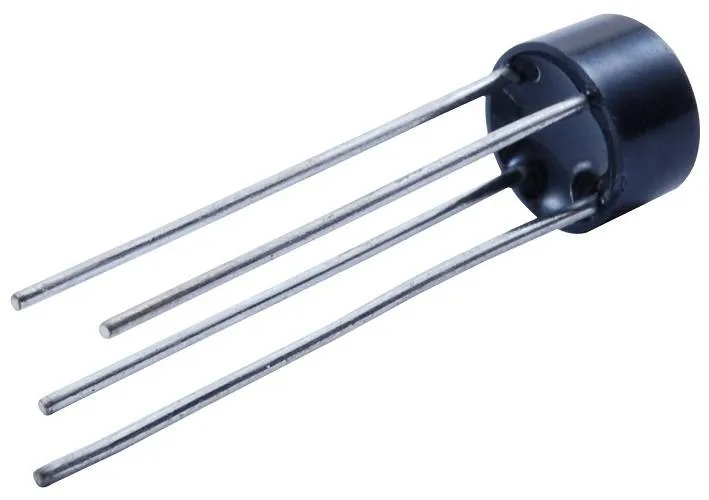

RB154 Single-Phase Bridge Rectifier 1.5A 400V
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The RB154 is a single-phase silicon bridge rectifier rated for 1.5 A and 400 V, housed in a molded plastic case with silver-plated copper leads. It converts AC input into pulsating DC and is designed for mounting on printed circuit boards, such as in small power supplies and adapter circuits.
Specifications
- Type
- Single-phase silicon bridge rectifier
- Forward current
- 1.5 A
- Max repetitive peak reverse voltage
- 400 V
- Max RMS voltage
- 280 V
- Peak forward surge current
- 40 A
- Operating temperature
- -55 to +150 °C
Frequently asked questions
How do I wire the RB154 in a circuit?
Connect the AC supply to the two AC pins and take the DC output from the + and - pins. Check the polarity marking on the body before soldering.
Can it be used with a 220 V mains supply?
Its 280 V RMS and 400 V peak reverse ratings cover a 220 V AC input. Keep the DC load below 1.5 A, and add a heatsink or reduce the load if you operate close to that limit.
