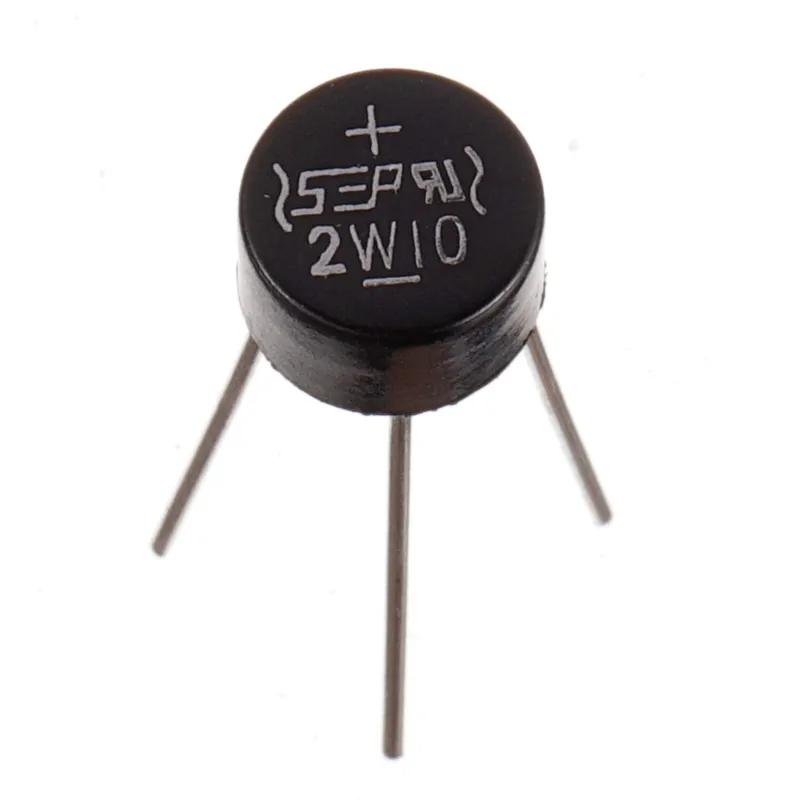

2W10 Bridge Rectifier 2A 1000V Single-Phase
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Microohm | 2W10 Bridge Rectifier 2A 1000V | 4.5 EGP7.25 | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 4.5 EGP
About this product
The 2W10 is a single-phase silicon bridge rectifier in a molded plastic case with silver-plated copper leads, designed for PCB mounting. It is rated 1000V reverse voltage and 2A average forward current, with a 60A peak surge current. It is used to convert AC into pulsating DC in power supply and adapter circuits.
Specifications
- Reverse voltage
- 1000 V
- Average forward current
- 2 A
- Peak forward surge current
- 60 A
- Maximum RMS voltage
- 700 V
- Forward voltage (max)
- 1.1 V
- Operating temperature
- -55 °C to 125 °C
Frequently asked questions
What is the price of 2W10 Bridge Rectifier 2A 1000V Single-Phase in Egypt?
2W10 Bridge Rectifier 2A 1000V Single-Phase currently costs 4.5 EGP in Egypt.
Where can I buy 2W10 Bridge Rectifier 2A 1000V Single-Phase in Egypt?
2W10 Bridge Rectifier 2A 1000V Single-Phase is available from Microohm. Compare the offers above to find the best price.
How do I wire the 2W10 for AC to DC conversion?
Connect the AC input to the two AC terminals marked with the tilde symbol. Take the rectified output from the terminals marked + and -, and check the polarity marking on the body.
Does it need a heatsink?
At low currents it may not. At higher load currents the body heats up, so check the thermal requirements for your application and add a heatsink if needed.
