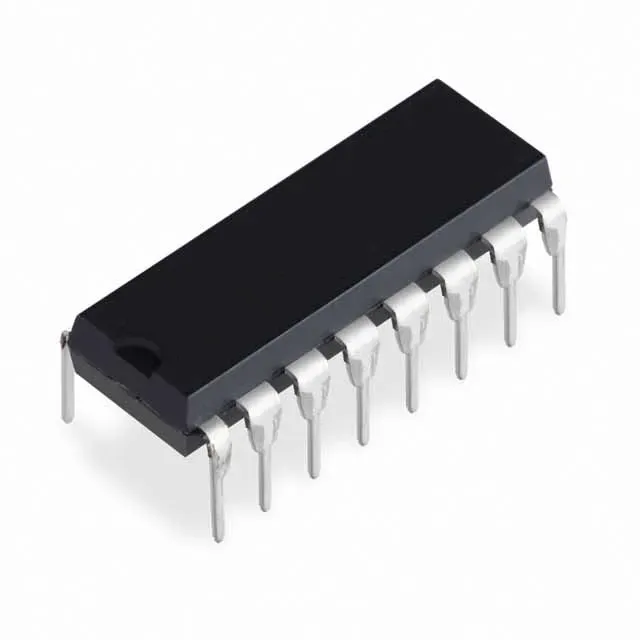

PD4164-3 DRAM 65,536 x 1 Bit Memory IC DIP-16
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | PD4164-3 DRAM 65,536 x 1 Bit Memory IC DIP-16 | 35 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 35 EGP
About this product
PD4164-3 is a 64K×1 dynamic N-channel MOS DRAM in a 16-pin DIP package, operating from a single +5V supply with 150ns access time. It is suited to vintage computer and memory expansion projects that need 1-bit wide dynamic RAM.
Specifications
- Organization
- 65,536 x 1 bit
- Supply voltage
- +5V
- Access time
- 150ns
- Package
- DIP-16
- Type
- Dynamic N-channel MOS DRAM
- Output
- Three-state, CAS-controlled
Frequently asked questions
What is the price of PD4164-3 DRAM 65,536 x 1 Bit Memory IC DIP-16 in Egypt?
PD4164-3 DRAM 65,536 x 1 Bit Memory IC DIP-16 currently costs 35 EGP in Egypt.
Where can I buy PD4164-3 DRAM 65,536 x 1 Bit Memory IC DIP-16 in Egypt?
PD4164-3 DRAM 65,536 x 1 Bit Memory IC DIP-16 is available from Makers Electronics. Compare the offers above to find the best price.
Does this DRAM need refreshing?
Yes. Dynamic DRAM must be refreshed periodically to keep stored data. The datasheet lists the hidden refresh method using CAS-before-RAS timing, and the refresh interval should be taken from the datasheet.
How are the address pins wired?
The 16-bit address is multiplexed onto 8 address lines (A0 to A7), with RAS latching the row address and CAS latching the column address. A memory controller or equivalent logic is needed to drive these signals.
