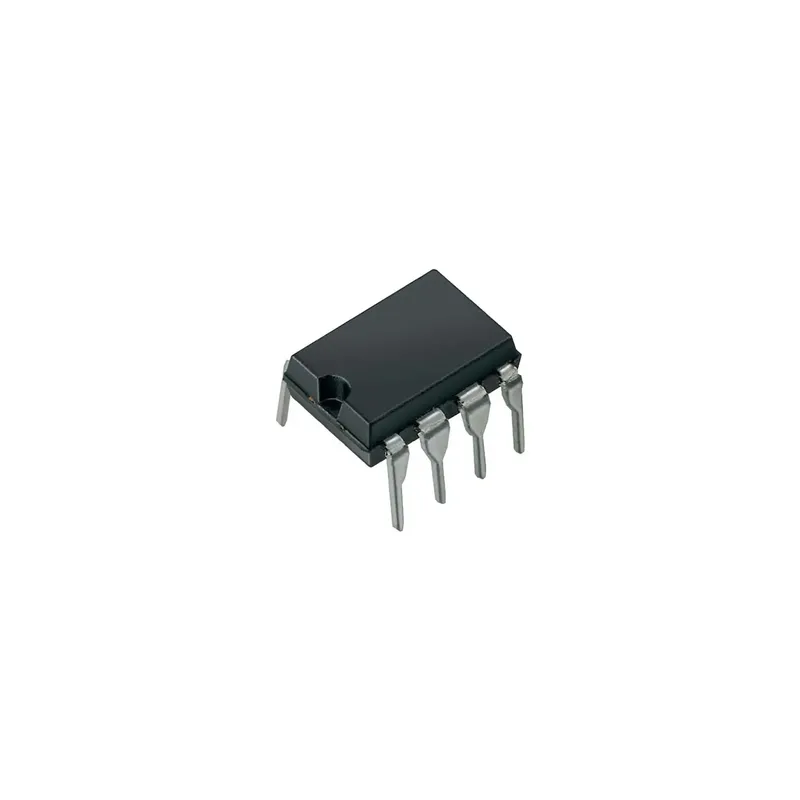

MAX1487CPA+ RS-485/RS-422 Half-Duplex Transceiver IC
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | MAX1487CPA+ RS-485/RS-422 transceiver IC | 5 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 5 EGP
About this product
The MAX1487CPA+ is a low-power half-duplex transceiver with a driver and receiver for RS-485 and RS-422 differential bus communication. It is protected against short circuits and thermal overload and allows up to 128 transceivers on one bus, which suits industrial sensor networks and long-distance serial links.
Specifications
- Supply voltage
- 5 V (single supply)
- Maximum data rate
- 2.5 Mbps
- Common-mode input range
- -7 V to +12 V
- Maximum transceivers on bus
- 128
- Quiescent current
- 230 µA
- Propagation delay
- 30 ns
- Duplex mode
- Half-duplex
- Package
- PDIP-8
Frequently asked questions
What is the price of MAX1487CPA+ RS-485/RS-422 Half-Duplex Transceiver IC in Egypt?
MAX1487CPA+ RS-485/RS-422 Half-Duplex Transceiver IC currently costs 5 EGP in Egypt.
Where can I buy MAX1487CPA+ RS-485/RS-422 Half-Duplex Transceiver IC in Egypt?
MAX1487CPA+ RS-485/RS-422 Half-Duplex Transceiver IC is available from Makers Electronics. Compare the offers above to find the best price.
How do I control the transmit and receive direction?
The transceiver has a driver enable (DE) pin and an active-low receiver enable (RE) pin. Drive DE high to transmit and low to receive, and hold RE low to enable the receiver. Connect both to GPIO pins on your microcontroller.
Can it work with a 3.3 V microcontroller?
The part is specified for a single 5 V supply. If your microcontroller runs at 3.3 V, power the transceiver from 5 V and check the logic levels on the receiver output before connecting it to a 3.3 V input.
