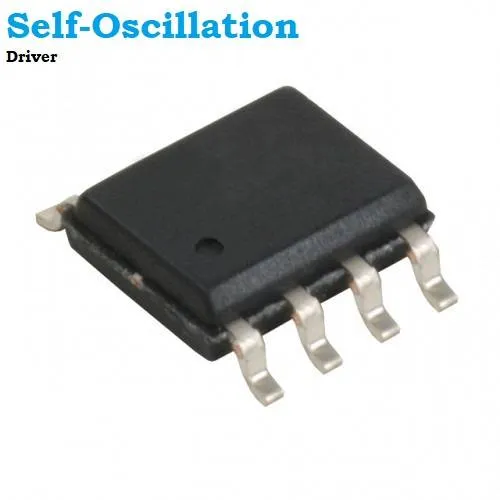

IR2153S Self-Oscillating Half-Bridge Driver IC, SOP-8
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A self-oscillating half-bridge driver IC in an 8-pin SOP package. It generates its own switching frequency, which is set by external RC components, and drives the two power MOSFETs of a half-bridge. It is commonly used in electronic ballasts, compact fluorescent lamp drivers and small switch-mode power supplies.
Specifications
- Type
- Self-oscillating half-bridge driver / مشغل نصف جسر ذاتي التذبذب
- Package
- SOP-8 (8-pin) / SOP-8 (8 أطراف)
- Frequency set by
- External RC components / مكونات RC خارجية
- Typical use
- Electronic ballasts, CFL drivers, small SMPS / موازنات إلكترونية، مشغلات CFL، مصادر تبديل صغيرة
- Manufacturer
- International Rectifier
Frequently asked questions
How do I set the switching frequency?
The frequency is set by the external resistor and capacitor values. Use the formula and component guidance in the IR2153 datasheet.
Is it suitable for mains-powered circuits?
It is used in mains-powered ballast and SMPS designs, but high-voltage work needs proper isolation and safety precautions. Follow the datasheet closely.
