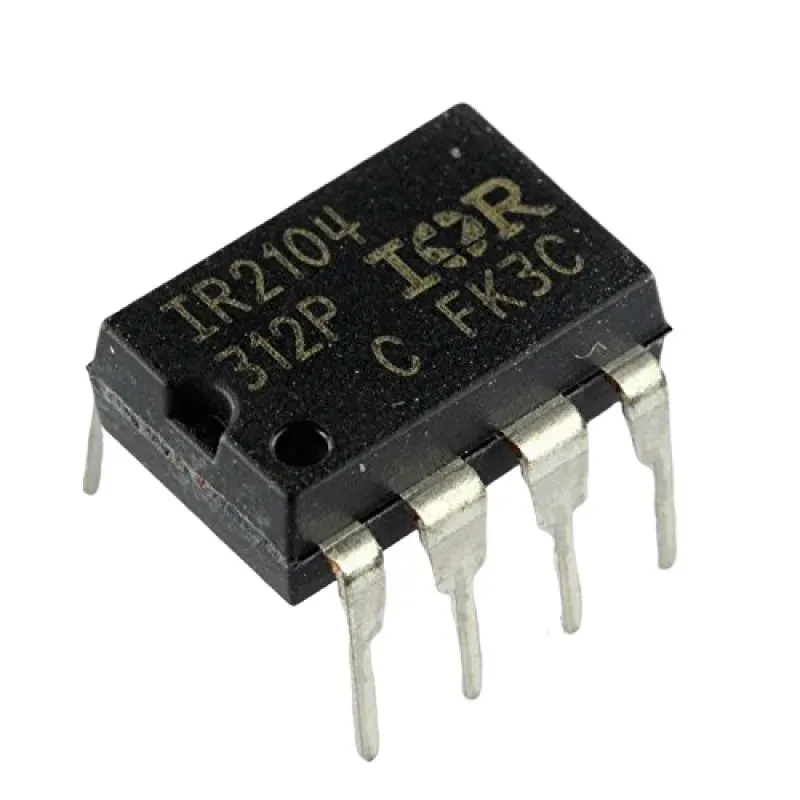

IR2104PB Half-Bridge Gate Driver IC, DIP-8
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers ElectronicsCheapest | IR2104 Half Bridge Gate Driver IC DIP-8 | 90 EGP | View in store |
 UGE | IR2104PB half bridge IGBT and MOSFET Gate Driver IC DIP-8 | 150 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 90 EGP
About this product
A half-bridge gate driver IC that drives the high-side and low-side MOSFETs or IGBTs in motor drivers, inverters and switching power stages. Its floating high-side channel uses a bootstrap supply and is rated up to +600 V, with undervoltage lockout and built-in cross-conduction prevention.
Specifications
- High-side voltage
- Up to +600 V
- Gate drive supply (VCC)
- 10 V to 20 V
- Logic input compatibility
- 3.3 V, 5 V, 15 V
- Undervoltage lockout
- Yes
- Dead time
- Internally set
- High-side output phase
- In phase with input
Frequently asked questions
What is the price of IR2104PB Half-Bridge Gate Driver IC, DIP-8 in Egypt?
IR2104PB Half-Bridge Gate Driver IC, DIP-8 currently costs between 90 and 150 EGP across 2 offers in Egypt.
Where can I buy IR2104PB Half-Bridge Gate Driver IC, DIP-8 in Egypt?
IR2104PB Half-Bridge Gate Driver IC, DIP-8 is available from Makers Electronics and UGE. Compare the offers above to find the best price.
How do I wire the bootstrap circuit?
Place a bootstrap diode from VCC to VB and a bootstrap capacitor between VB and VS, with VS connected to the half-bridge midpoint. Use the component values recommended in the datasheet for your switching frequency.
What supply and logic voltages does it accept?
The gate drive supply VCC must be within 10 V to 20 V, so a 5 V supply alone is not enough. Logic inputs are compatible with 3.3 V, 5 V and 15 V signals, so it can be driven directly from most microcontroller outputs.
