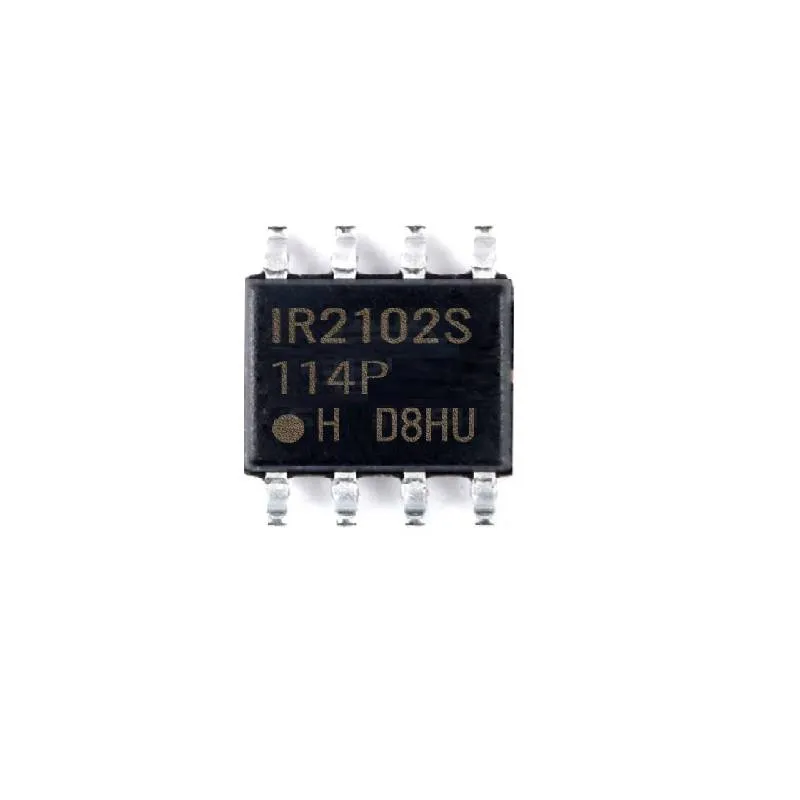

IR2102S High and Low Side Power MOSFET and IGBT Driver
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
IR2102S is a high-speed gate driver IC from Infineon (formerly International Rectifier) that drives a high-side and a low-side power MOSFET or IGBT in half-bridge circuits. It is commonly used in motor drivers, inverters and switch-mode power supplies to convert logic-level control signals into fast switching for power devices.
Specifications
- Driver type
- High-side and low-side driver (half-bridge)
- Supply voltage (VCC)
- 10 V to 20 V
- Compatible devices
- Power MOSFET and IGBT
- Package
- SOIC-8 (S suffix)
Frequently asked questions
How is the high-side MOSFET powered in a typical circuit?
Its high-side output usually uses a bootstrap circuit, consisting of a bootstrap diode and capacitor, to generate the floating supply for the high-side gate. Follow the bootstrap wiring shown in the datasheet.
What supply voltage does it need?
The supply voltage (VCC) is specified from 10 V to 20 V. Keep the supply within this range and make sure the gate drive voltage suits the power device you are using.
