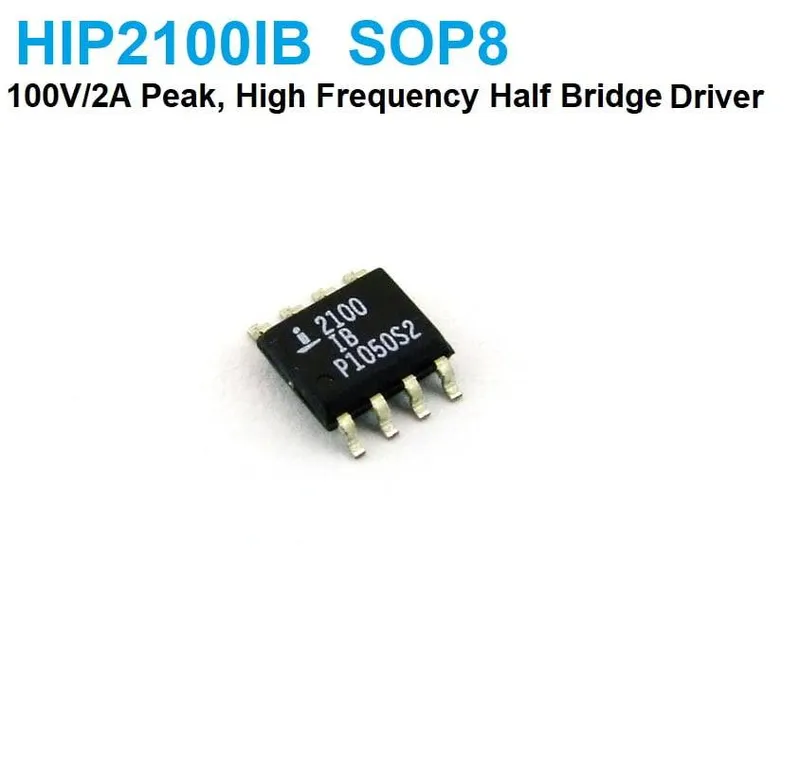

HIP2100IB 100V 2A Peak High-Frequency Half-Bridge MOSFET Driver
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The HIP2100IB is a high-frequency 100 V half-bridge N-channel MOSFET driver with independent low-side and high-side gate drivers matched to 8 ns. It provides under-voltage protection on both supplies and an on-chip diode, making it suitable for half-bridge converters and motor driver stages.
Specifications
- Device type
- High-frequency half-bridge N-channel MOSFET driver
- Voltage rating
- 100 V
- Peak output current
- 2 A
- Gate driver matching
- 8 ns
- Control
- Independent high-side and low-side
- Protection
- Under-voltage on both high-side and low-side supplies
- Integrated diode
- On-chip bootstrap diode
Frequently asked questions
Does it need an external bootstrap diode?
No. The on-chip diode replaces the discrete diode normally required. You still need an external bootstrap capacitor to supply the high-side driver.
How is dead time set with this driver?
The high-side and low-side drivers are controlled independently, so dead time is set by the timing of the input signals from your controller. This gives flexibility in choosing dead time and driver protocol.
