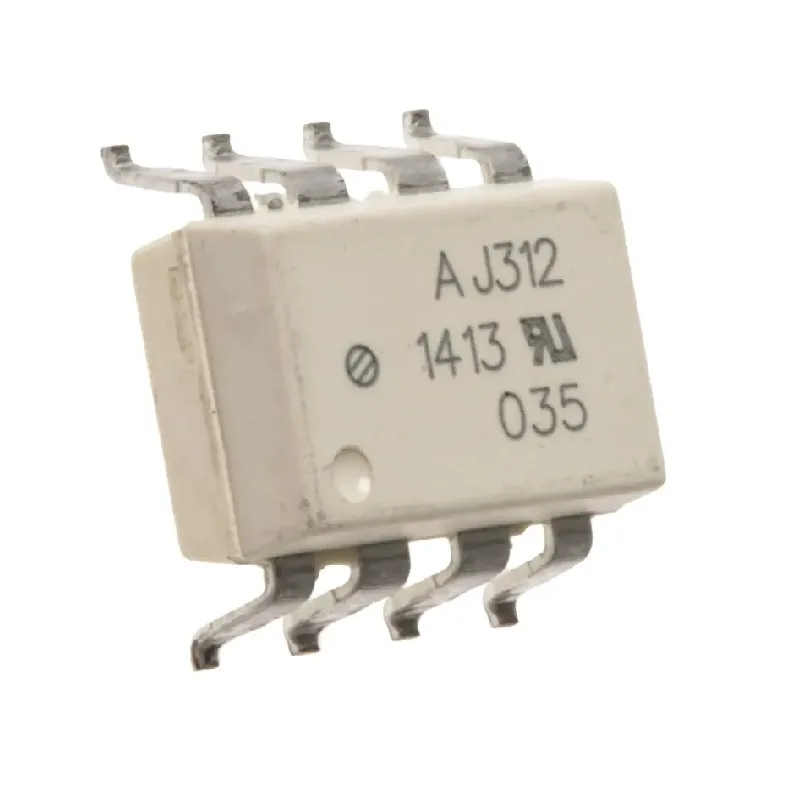

HCPL-J312 2.5A IGBT Gate Drive Optocoupler
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A high-isolation optocoupler gate driver from Broadcom (Avago) that drives IGBT gates with up to 2.5A peak output current. It provides 3750Vrms isolation between input and output, a 500 ns maximum propagation delay and UVLO protection, for safer IGBT switching in motor drives, inverters and power supplies.
Specifications
- Peak output current
- 2.5A
- Propagation delay
- 500 ns max
- Isolation voltage
- 3750Vrms
- UVLO protection
- Yes
- Operating temperature
- -40°C to +100°C
Frequently asked questions
What is this IC used for?
It drives the gate of an IGBT, or a similar large power transistor, in circuits where the control side must be electrically isolated from the power stage, such as inverters and motor drives.
Does the output stage need its own power supply?
Yes. The output side needs a separate supply referenced to the emitter or source of the power device, isolated from the control circuit. Check the datasheet for the recommended supply range before wiring.
