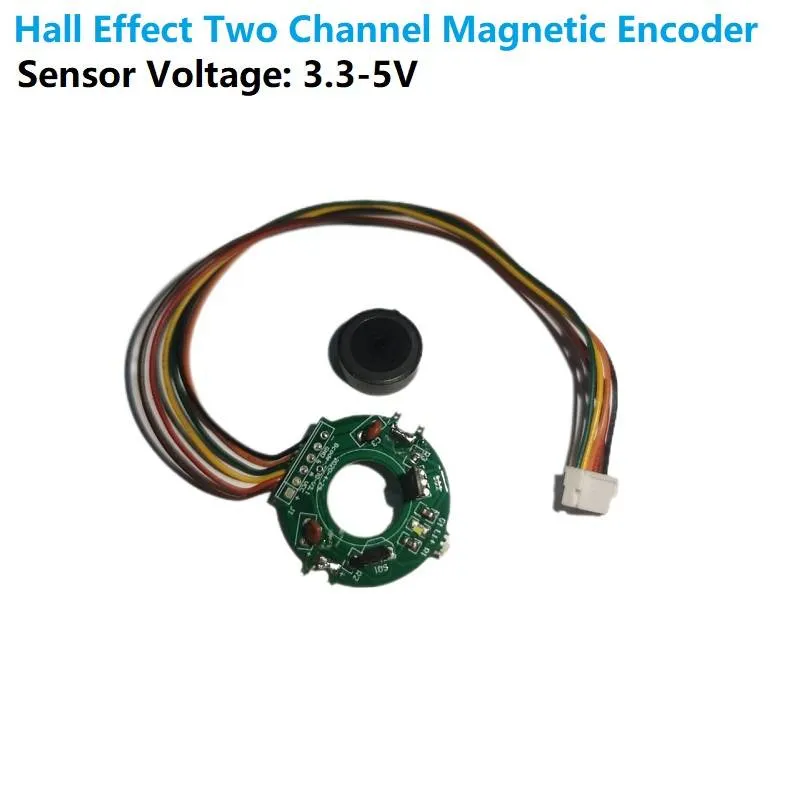

Hall Effect Two-Channel Magnetic Rotary AB Encoder for DC Motors
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A two-channel Hall effect quadrature encoder that senses a magnetic disk on the rear protrusion of a DC motor shaft. It outputs square-wave channels A and B, about 90° out of phase, so the transition rate gives motor speed and the transition order gives direction. It is a practical choice for speed and direction feedback in DC motor projects.
Specifications
- Sensor supply voltage (Vcc)
- 3.3 V to 5 V
- Maximum supply current
- 10 mA
- Resolution
- 7 counts per revolution (counting both edges of both channels)
- Outputs
- A and B square waves, approx. 90° phase shift
- Output level
- 0 V to Vcc
- Number of pins
- 6
Frequently asked questions
How do I get speed and direction from the A and B outputs?
Count the transitions on channels A and B. The frequency of transitions gives the motor speed, and the order in which A and B change gives the direction of rotation.
What supply voltage should I use with this encoder?
The Hall sensor needs 3.3 V to 5 V and draws up to 10 mA. Make sure your microcontroller input can read the output high level, which goes up to Vcc.
