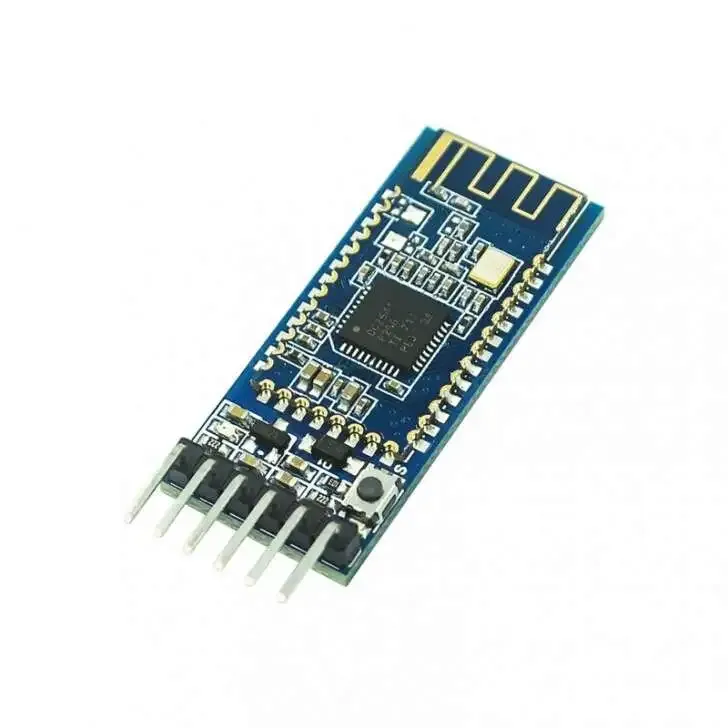

BT-05 Bluetooth 4.0 BLE Module CC2541 (Android & iOS)
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | Bluetooth Module V4.0 CC2541 (Android&IOS BT-05) | 200 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 200 EGP
About this product
The BT-05 is a Bluetooth 4.0 BLE module built around the CC2541 chip, supporting both Central and Peripheral roles. It provides wireless serial communication with Android and iOS devices using UUID FFE0/FFE1, for projects such as remote control and sensor data links.
Specifications
- Bluetooth version
- 4.0 (BLE)
- Chip
- CC2541
- Operating frequency
- 2.4 GHz ISM band
- Default baud rate
- 9600
- Operating voltage
- 3.3V to 6V (do not exceed 6V)
- Communication range
- 60 m
- Size
- 37.5 mm × 16.5 mm
- Power consumption
- 9 mA transmission / 90–190 µA deep sleep
Frequently asked questions
What is the price of BT-05 Bluetooth 4.0 BLE Module CC2541 (Android & iOS) in Egypt?
BT-05 Bluetooth 4.0 BLE Module CC2541 (Android & iOS) currently costs 200 EGP in Egypt.
Where can I buy BT-05 Bluetooth 4.0 BLE Module CC2541 (Android & iOS) in Egypt?
BT-05 Bluetooth 4.0 BLE Module CC2541 (Android & iOS) is available from Makers Electronics. Compare the offers above to find the best price.
How do I wire the BT-05 to an Arduino?
Connect VCC and GND to power, then connect the module TXD to the Arduino RX pin and the module RXD to the Arduino TX pin. Many BT-05 boards use 3.3V logic on RXD, so use a voltage divider or level shifter when driving it from a 5V Arduino TX pin.
Which apps can connect to the BT-05 from a phone?
The module supports Android and iOS. Use a BLE serial terminal app that can connect to the FFE0 service and the FFE1 characteristic, which are the UUIDs listed for this module.
