Bourns 3296W 10K Multi-Turn Precision Trimmer Potentiometer
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | 3296W Precision Potentiometer Square Cermet Multi turn 10K | 8 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 8 EGP
About this product

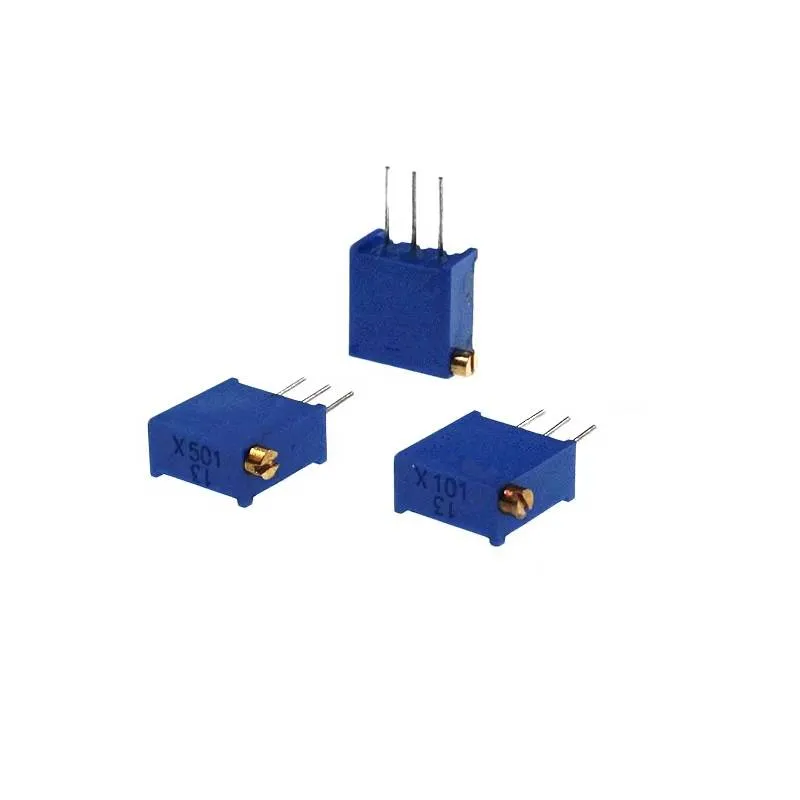

The 3296W is a 10 kΩ square cermet trimmer potentiometer with 25-turn adjustment for fine, precise setting inside circuits. It is sealed against moisture and dirt and uses a vertical screw for adjustment, which makes it common for calibration and reference-voltage setting.
Specifications
- Resistance
- 10 kΩ (10K)
- Adjustment turns
- 25 turns (multi-turn)
- Element type
- Cermet
- Taper
- Linear
- Absolute minimum resistance
- 2 Ω or 1% max
- Insulation resistance
- 1000 MΩ min at 500 VDC
- Adjustment type
- Vertical screw
Frequently asked questions
What is the price of Bourns 3296W 10K Multi-Turn Precision Trimmer Potentiometer in Egypt?
Bourns 3296W 10K Multi-Turn Precision Trimmer Potentiometer currently costs 8 EGP in Egypt.
Where can I buy Bourns 3296W 10K Multi-Turn Precision Trimmer Potentiometer in Egypt?
Bourns 3296W 10K Multi-Turn Precision Trimmer Potentiometer is available from UGE. Compare the offers above to find the best price.
How do I use the trimmer to set a specific voltage?
Wire the outer pins to the supply and ground and take the output from the centre wiper pin, forming a voltage divider. Turn the screw with a small screwdriver while measuring the wiper voltage with a multimeter until it reaches the target value.
Is it meant for frequent user adjustment?
No. It is a trimmer intended for occasional setting during calibration. For frequent adjustment by a user, a knob-type potentiometer is more suitable.
