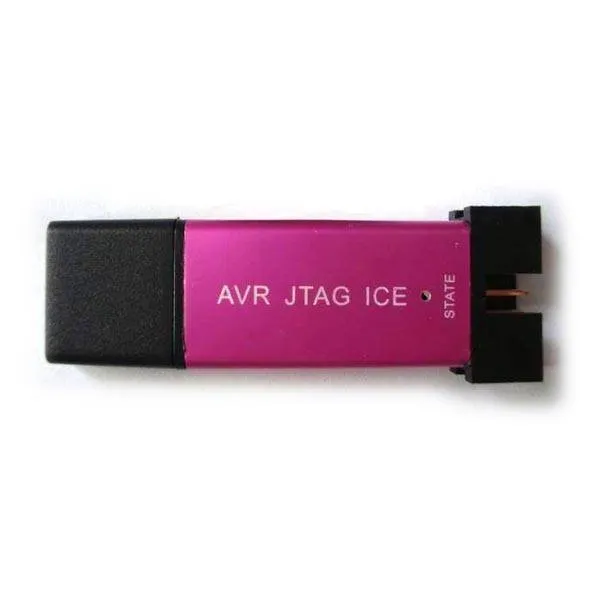

AVR USB JTAG ICE Programmer, Emulator and Debugger (Metal Case)
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A metal-cased USB JTAG ICE emulator for programming and debugging JTAG-capable Atmel AVR microcontrollers. The listing highlights a buffer chip, a 0.5 A resettable fuse to protect the computer's USB port, and support for 3.3 V target systems. It is a practical debugging tool for AVR development and firmware testing.
Specifications
- Interface
- USB
- Target device
- Atmel AVR with JTAG interface
- Overcurrent protection
- 0.5 A resettable fuse
- Target voltage support
- 3.3 V (wide operating voltage)
- Buffer chip
- Yes
- Case
- Metal
Frequently asked questions
Which AVR chips can I program with it?
It works with AVR microcontrollers that have a JTAG interface. Many small AVR chips use debugWIRE or ISP instead, so check your chip's datasheet for JTAG support before buying into this workflow.
Which software is used with this programmer?
AVR JTAG ICE tools are typically used with Microchip Studio (formerly Atmel Studio) for programming and debugging. Connect the target's reference voltage to the tool so the signal levels match, especially for 3.3 V boards.
