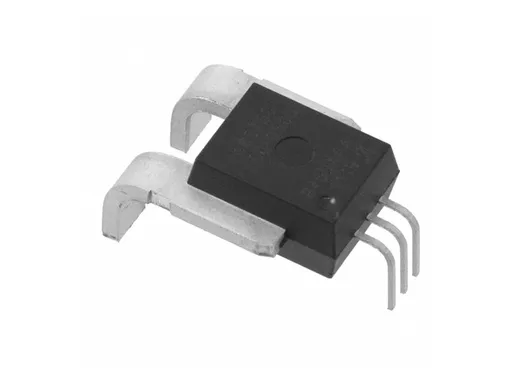

ACS758LCB-050B Hall-Effect AC/DC Current Sensor ±50A
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The ACS758LCB-050B is a bidirectional Hall-effect current sensor IC from Allegro MicroSystems that measures AC and DC current up to ±50 A without breaking the circuit. It outputs a voltage proportional to the current, which makes it suitable for motor drives, battery monitoring, power supplies and overcurrent protection.
Specifications
- Measurement range
- ±50 A
- Sensitivity
- 60 mV/A
- Supply voltage
- 5 V
- Current direction
- Bidirectional (AC/DC)
- Sensing principle
- Hall effect
- Output type
- Analog voltage, ratiometric
Frequently asked questions
How is the sensor connected in a circuit?
The current to be measured passes through the IC's internal conductor between its IP+ and IP- pins, so the sensor is placed in series with the load. The analog output is then read by an ADC pin on a microcontroller.
Can it be read directly by a 3.3 V microcontroller?
The output is ratiometric and sits near half of the supply voltage at zero current. With a 5 V supply the output can exceed 3.3 V at high currents, so a voltage divider or a 3.3 V supply and scaling should be used with a 3.3 V ADC. Check the datasheet for the exact output range.
