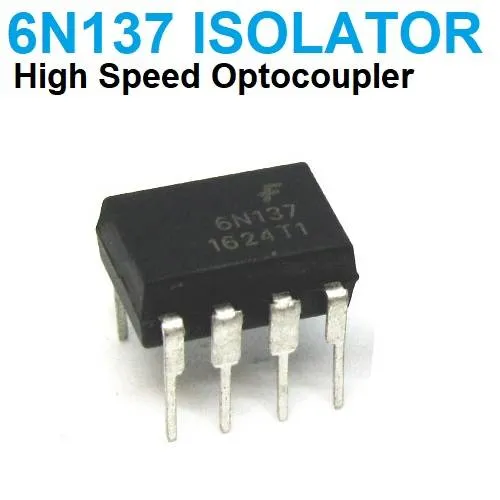

6N137 High-Speed Logic Optocoupler 10 Mbit/s
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | 6N137 High Speed Logic OptoCoupler Optoisolator DIP IC | 25 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 25 EGP
About this product

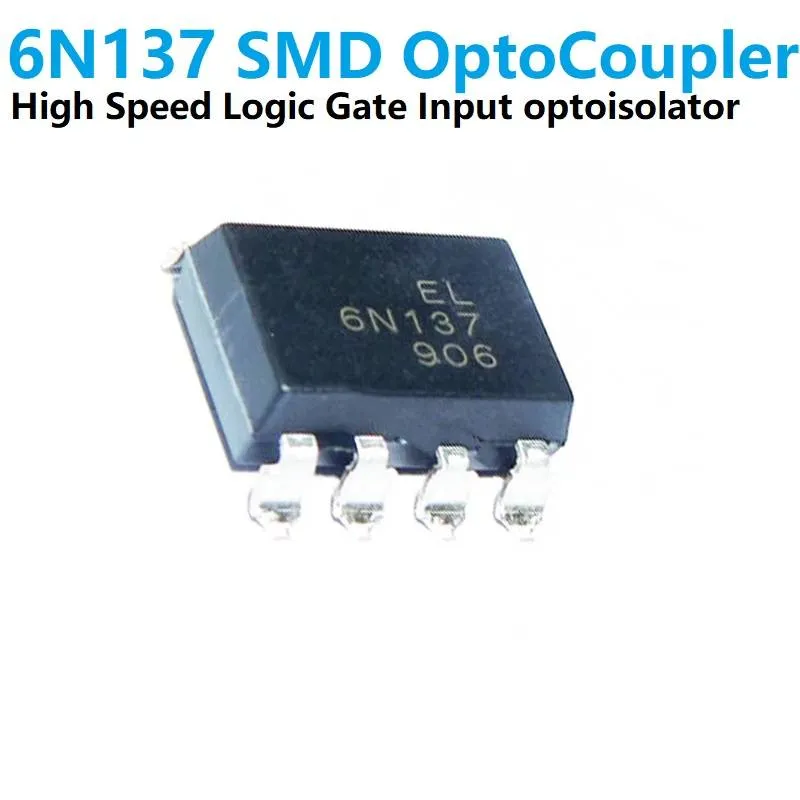

6N137 is a high-speed logic-level optocoupler that isolates a digital signal between two circuits, with a data rate of up to 10 Mbit/s and a typical propagation delay of about 50 ns. It helps protect microcontrollers from noise and ground loops in industrial and communication circuits. Available in DIP and SMD packages.
Specifications
- Data rate
- 10 Mbit/s
- Propagation delay
- ~50 ns
- Maximum supply voltage
- 7 V
- Input forward voltage
- 1.1 V to 1.7 V
- Output sink current
- 7 mA max
- Logic high minimum
- 2 V
- Logic low maximum
- 0.8 V
Frequently asked questions
What is the price of 6N137 High-Speed Logic Optocoupler 10 Mbit/s in Egypt?
6N137 High-Speed Logic Optocoupler 10 Mbit/s currently costs 25 EGP in Egypt.
Where can I buy 6N137 High-Speed Logic Optocoupler 10 Mbit/s in Egypt?
6N137 High-Speed Logic Optocoupler 10 Mbit/s is available from UGE. Compare the offers above to find the best price.
Does the 6N137 output need a pull-up resistor?
Yes. The output is open-collector, so it needs a pull-up resistor to the supply on the output side to produce a logic-high level.
How do I drive the input LED?
Drive the input LED through a series resistor sized so the forward current stays within the datasheet limits. The listed input forward voltage is 1.1 V to 1.7 V.
