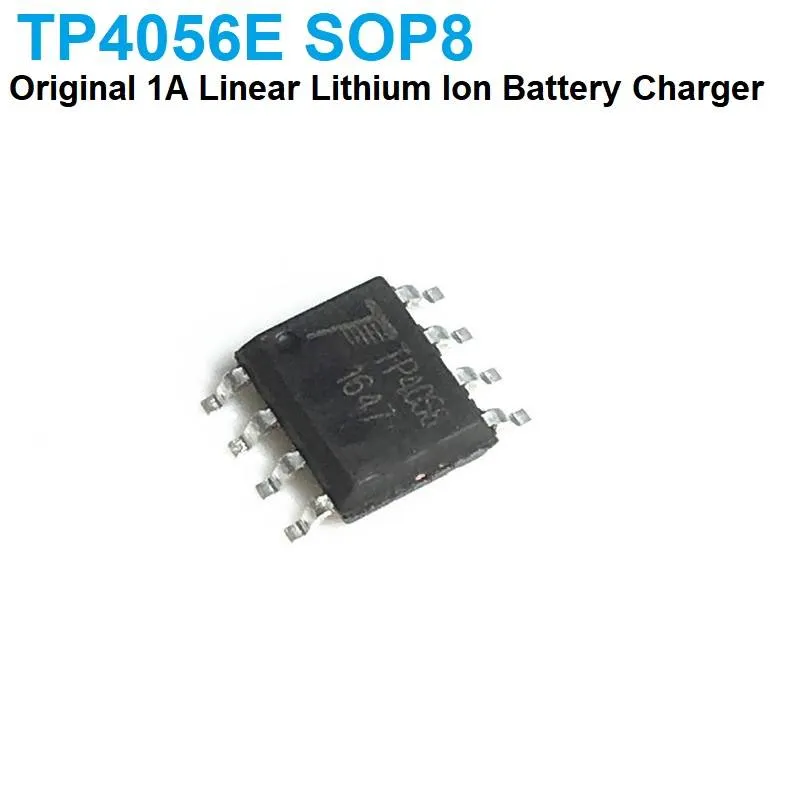

TP4056E 1A Li-ion Battery Linear Charger IC with CC/CV, SOP
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | TP4056E lithium-ion battery 1A Linear Charger with constant Current and Constant Voltage Control | 20 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 20 EGP
About this product
The TP4056E is a single-cell lithium-ion linear charger IC that uses constant-current and constant-voltage charging with a fixed 4.2V charge voltage. The charge current is set by one external resistor, up to about 1A, and the chip can work from a USB or wall adapter input. It is widely used in compact portable devices and battery charging boards.
Specifications
- Charge voltage
- 4.2V (fixed)
- Maximum charge current
- 1A
- Battery chemistry
- Single-cell Li-ion
- Charge current setting
- Single external resistor
- Input source
- USB or wall adapter
- Package
- SOP
- Charge termination
- Automatic
Frequently asked questions
What is the price of TP4056E 1A Li-ion Battery Linear Charger IC with CC/CV, SOP in Egypt?
TP4056E 1A Li-ion Battery Linear Charger IC with CC/CV, SOP currently costs 20 EGP in Egypt.
Where can I buy TP4056E 1A Li-ion Battery Linear Charger IC with CC/CV, SOP in Egypt?
TP4056E 1A Li-ion Battery Linear Charger IC with CC/CV, SOP is available from UGE. Compare the offers above to find the best price.
Does the TP4056E protect the battery from over-discharge?
No. The TP4056E is a charger only and does not protect the cell from over-discharge or short circuits. Use a protection circuit such as the FS8205S with a DW01A-type controller, or a cell with built-in protection.
How is the charge current set?
A resistor connected to the PROG pin sets the charge current. A 1.2kΩ PROG resistor is the common value for about 1A. Confirm the formula in the datasheet before choosing a different value.
