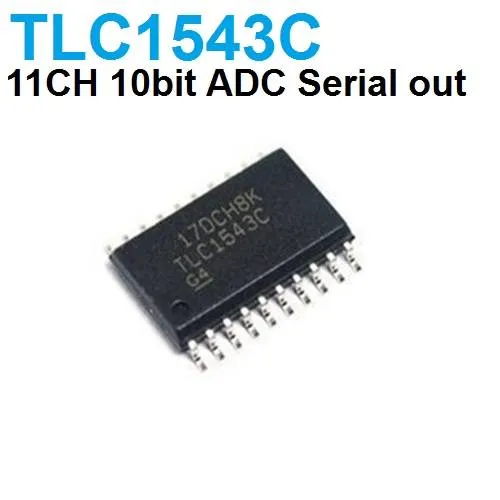

TLC1543C 10-bit Serial ADC with 11-Channel Multiplexer (SMD)
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
TLC1543C is a CMOS 10-bit successive-approximation analog-to-digital converter with 11 analog input channels, controlled over a simple 4-wire serial interface. It lets one microcontroller port read several sensor voltages, and includes built-in self-test modes and an end-of-conversion output.
Specifications
- Resolution
- 10-bit
- Analog input channels
- 11
- Interface
- 4-wire serial (CS, I/O CLOCK, ADDRESS, DATA OUT)
- Total unadjusted error
- ±1 LSB max
- Supply voltage
- 4.5V - 5.5V
- Technology
- CMOS
- End-of-conversion output
- EOC
Frequently asked questions
How do I connect the TLC1543C to a microcontroller?
Connect CS, I/O CLOCK, ADDRESS and DATA OUT to the microcontroller. The 4-bit channel address is shifted in on ADDRESS while the conversion result is shifted out on DATA OUT.
Does the TLC1543C need a reference voltage?
Yes. The conversion range is set by the reference inputs (REF+ and REF-), so a stable reference voltage must be applied to them.
