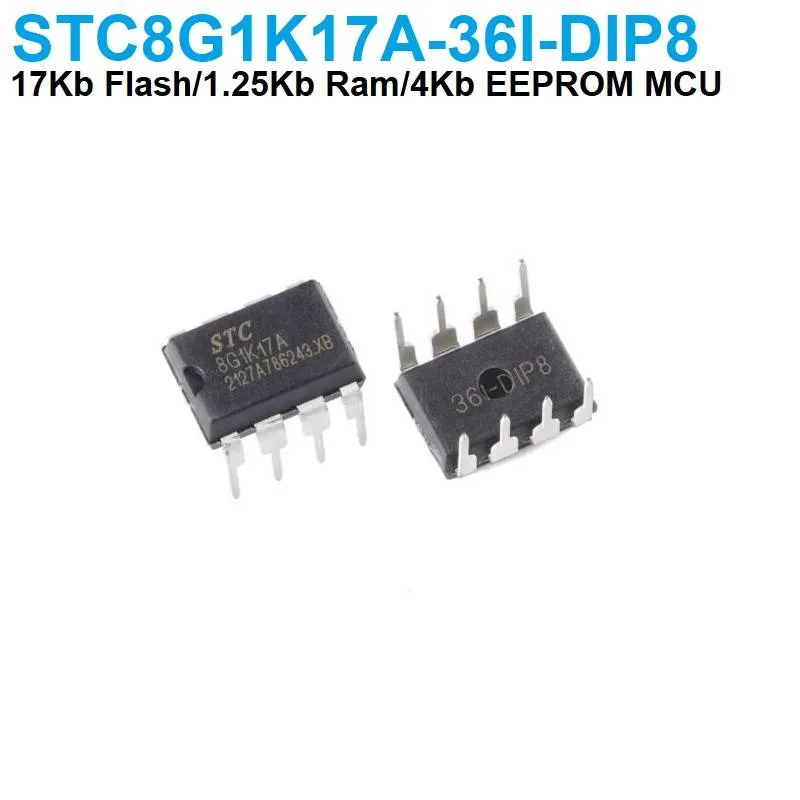

STC8G1K17A-36I-DIP8 8051-Core Microcontroller, 17KB Flash, DIP-8
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The STC8G1K17A-36I is an 8-bit 8051-core microcontroller with 17 KB program flash and 1.25 KB of RAM, in an 8-pin DIP package. It includes a 10-bit 8-channel ADC, a comparator, two 16-bit timers, and UART, I2C and SPI interfaces. It operates from 1.9 V to 5.5 V over -40 °C to +85 °C, suited to small embedded and learning projects.
Specifications
- CPU core
- 8051 (51 series)
- Program flash
- 17 KB
- RAM
- 1.25 KB
- Supply voltage
- 1.9 V to 5.5 V
- ADC
- 10-bit, 8 channels
- GPIO ports
- 6
- Operating temperature
- -40 °C to +85 °C
- Package
- DIP-8
Frequently asked questions
How is this chip programmed?
STC8 devices are typically programmed over UART using the manufacturer's ISP tool and a USB-to-serial adapter. Check the datasheet for the exact pins and bootloader procedure.
Can I program it like an Arduino board?
No. It is an 8051-family chip, not an AVR board, so you need an 8051 C toolchain such as SDCC or Keil together with STC's programming tool. With 8 pins, six are GPIO and two are used for power.
