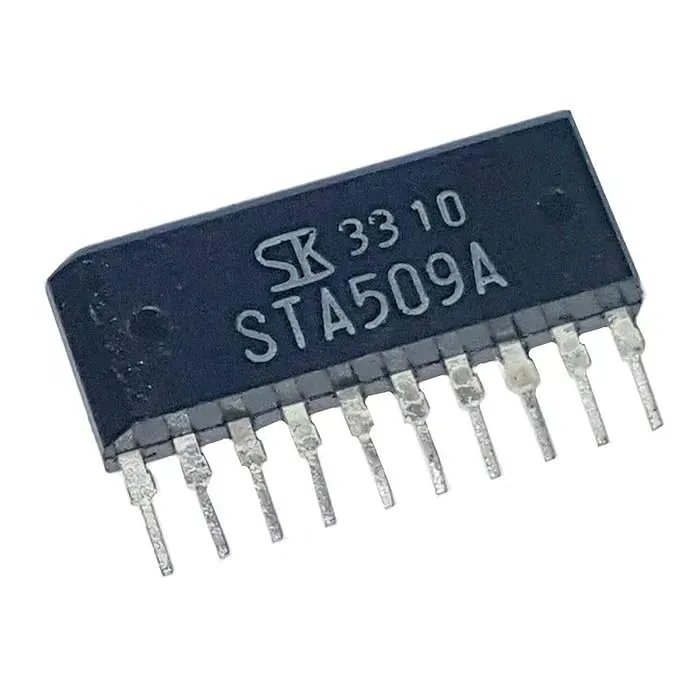

STA509A Quad N-Channel MOSFET Array 57V 3A SIP-10
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | STA509A Quad N-Channel MOSFET Driver Array, 57V 3A, SIP-10 (Nissan ECU board Drive IC) | 600 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 600 EGP
About this product
STA509A is a quad N-channel MOSFET array in a 10-pin SIP package, rated at 57 V drain-to-source and 3 A continuous drain current at 25 °C. It is used as a switching stage for driving loads in driver boards such as automotive ECU output circuits.
Specifications
- Configuration
- 4 N-Channel
- Drain to Source Voltage (Vdss)
- 57 V
- Continuous Drain Current (Id) @ 25°C
- 3 A (Ta)
- Rds(on) (Max)
- 250 mΩ @ 1 A, 10 V
- Gate Threshold Voltage (Vgs(th) Max)
- 2.5 V @ 250 µA
- Input Capacitance (Ciss) (Max)
- 200 pF @ 10 V
- Power Dissipation (Max)
- 4 W (Ta), 20 W (Tc)
- Package
- 10-SIP, Through Hole
Frequently asked questions
What is the price of STA509A Quad N-Channel MOSFET Array 57V 3A SIP-10 in Egypt?
STA509A Quad N-Channel MOSFET Array 57V 3A SIP-10 currently costs 600 EGP in Egypt.
Where can I buy STA509A Quad N-Channel MOSFET Array 57V 3A SIP-10 in Egypt?
STA509A Quad N-Channel MOSFET Array 57V 3A SIP-10 is available from Makers Electronics. Compare the offers above to find the best price.
Can it drive relays or motors directly?
It can switch loads up to 57 V and 3 A, but confirm the load current and the on-resistance losses against the datasheet. Inductive loads such as relays and motors need a flyback diode to protect the MOSFET.
Where can I find the pinout for wiring?
The pinout of the 10-pin SIP package is not included in the listing. Refer to the STA509A datasheet for the pin assignment before wiring the gate, drain and source connections.
