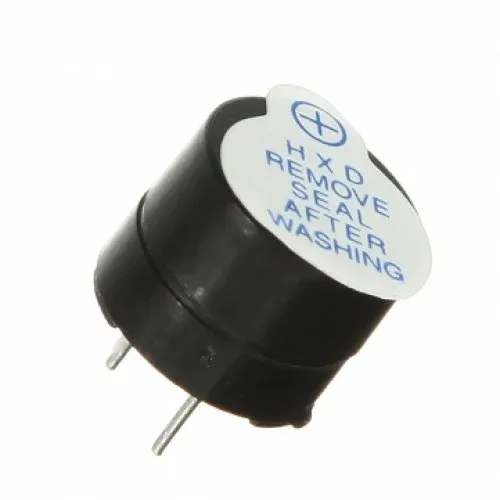

Small PCB Mount Buzzer 5V 2kHz 12x9mm
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | Small Buzzer PCB mount 5V 12x9mm | 15 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 15 EGP
About this product
A small PCB-mount buzzer that operates around 2 kHz at 5V, used for simple tones and user-interface alerts. Its pins are through-hole solderable, with a typical sound output of 95 dBA and a coil resistance of 42 Ω ±6.3 Ω.
Specifications
- Operating voltage
- 5V
- Mean current (max)
- 35mA
- Operating frequency
- ~2 kHz
- Sound output (typical)
- 95 dBA
- Coil resistance
- 42Ω ±6.3Ω
- Mounting
- PCB through-hole (PTH)
- Size
- 12 × 9 mm
Frequently asked questions
What is the price of Small PCB Mount Buzzer 5V 2kHz 12x9mm in Egypt?
Small PCB Mount Buzzer 5V 2kHz 12x9mm currently costs 15 EGP in Egypt.
Where can I buy Small PCB Mount Buzzer 5V 2kHz 12x9mm in Egypt?
Small PCB Mount Buzzer 5V 2kHz 12x9mm is available from UGE. Compare the offers above to find the best price.
Can I drive this buzzer directly from an Arduino pin?
Not recommended. The mean current can reach 35mA, which is close to the 40mA absolute maximum per pin on the ATmega328P. Use a transistor driver for safer operation, and use tone() on a PWM-capable or any digital pin to generate the frequency.
Can it play notes at frequencies other than 2 kHz?
The listing specifies an operating frequency of around 2 kHz. Whether it can reproduce other frequencies depends on the buzzer type, so check the datasheet before using it for melodies.
