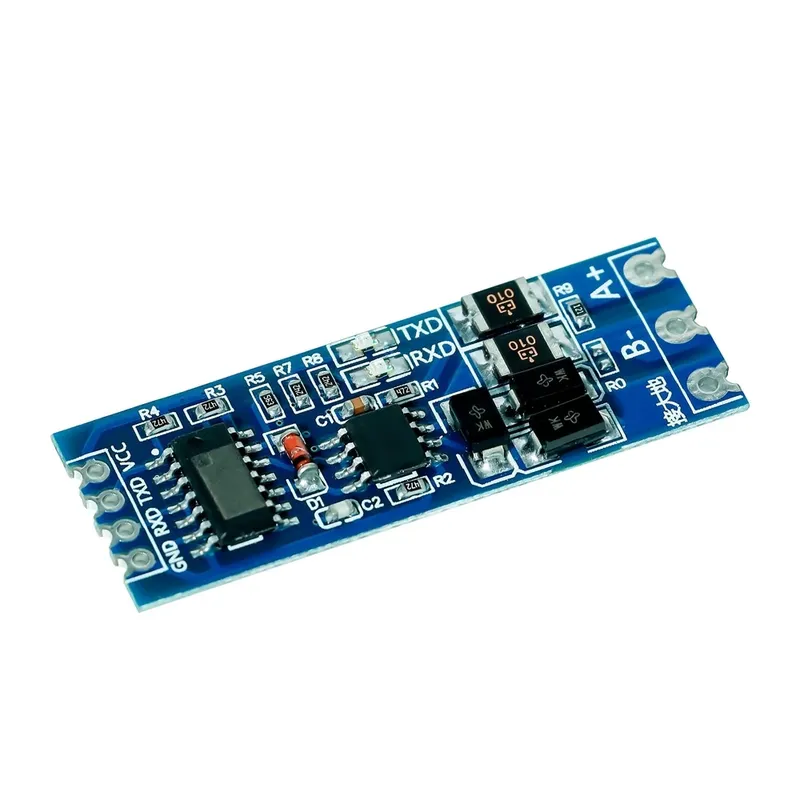

RS485 to TTL Two-Way Converter Module (MAX485)
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A two-way converter module that links the TTL serial interface of a microcontroller to an RS-485 network in both directions. It works from 3.3 V to 5 V and is commonly used in industrial automation to connect controllers to RS-485 devices over cable runs of up to about 800 m.
Specifications
- Working voltage
- 3.3 V to 5 V
- Communication
- Two-way: RS485 to TTL and TTL to RS485
- Transmission distance
- Up to 800 m
- Transceiver IC
- MAX485
Frequently asked questions
Is it compatible with 3.3 V boards such as ESP32?
Yes. The working voltage range includes 3.3 V, so it can interface with 3.3 V logic. Make sure the module's DE and RE control pins are connected to a GPIO pin for half-duplex direction control.
Can I really reach 800 m?
The 800 m figure is the maximum listed for the module. The achievable distance depends on baud rate, cable quality and termination. Lower baud rates and twisted-pair cable give better results over long distances.
