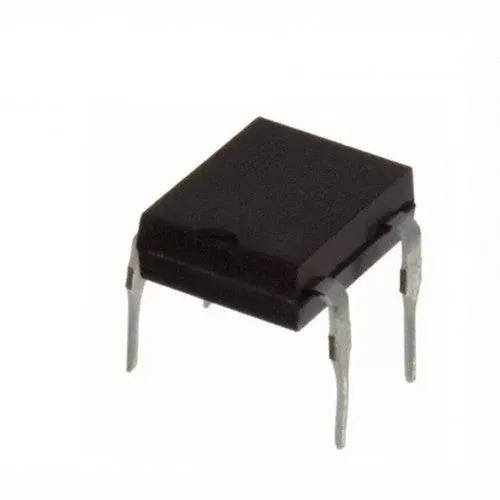

Rectron M1 Single-Phase Bridge Rectifier 1000 V, DB-1 Package
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A single-phase bridge rectifier in a DB-1 through-hole package that converts AC into pulsating DC. Its 1000 V peak reverse voltage rating suits rectification stages in power supplies and adapters, within the rated forward current.
Specifications
- Type
- Single-phase bridge
- Peak reverse voltage
- 1000 V
- Max RMS reverse voltage
- 700 V
- Forward continuous current
- 1 A
- Max surge current
- 40 A
- Forward voltage drop
- 1.1 V
- Package
- DB-1, through hole
Frequently asked questions
Can this rectifier be used on 230 V mains?
Its 1000 V peak reverse voltage exceeds the peak of 230 V AC (about 325 V), so it can be used in a mains bridge. The forward current must stay within the rated 1 A, and the circuit needs proper fusing and isolation.
What is the difference between peak reverse voltage and max RMS reverse voltage?
Peak reverse voltage is the highest instantaneous reverse voltage the rectifier can block. Max RMS reverse voltage is the highest AC input (RMS) the bridge is rated for, which is 700 V for this part.
