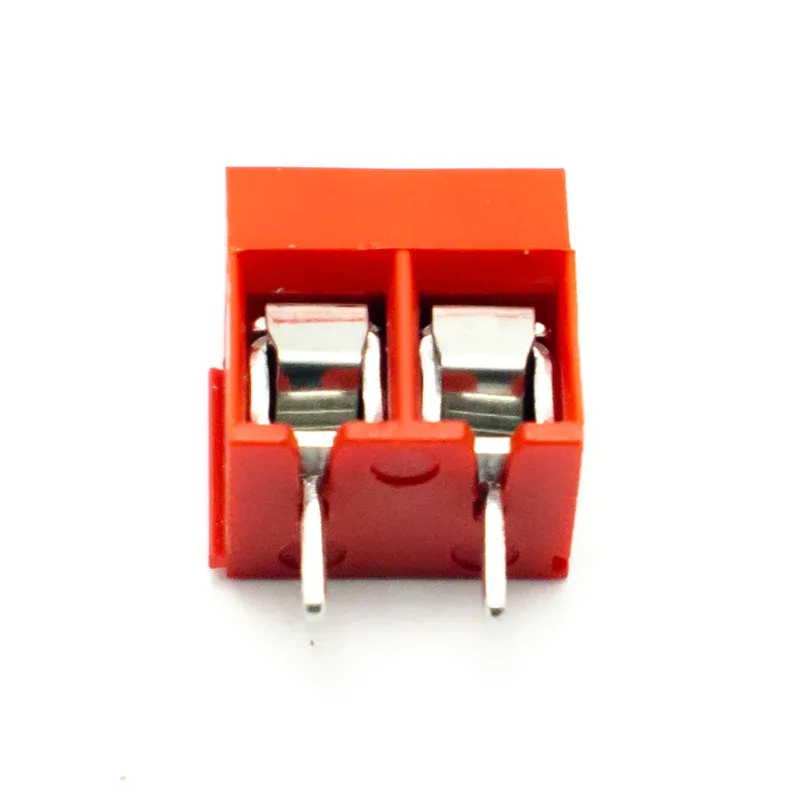

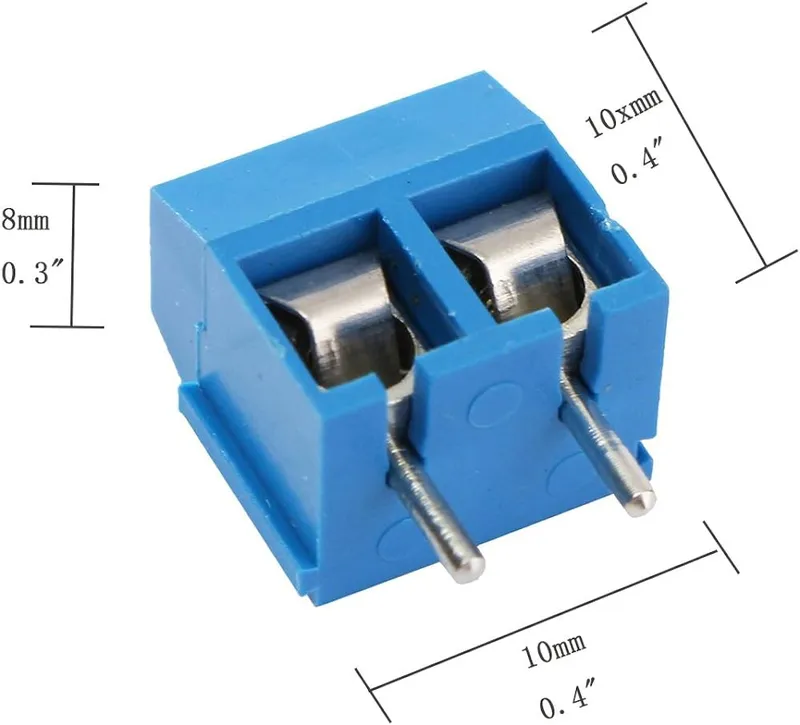

PCB Stacking Terminal Block 2-Pin 5mm Pitch
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Future Electronics | PCB Stacking Terminal Block 2pin | 4 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 4 EGP
About this product
A 2-position PCB screw terminal block with 5 mm pitch for connecting wires to a circuit board. It offers two levels of connection, suiting compact boards, and blocks can be joined with dovetail joints. It accepts wires from 22 to 14 AWG (up to 2.5 mm²) and is tightened to 0.4 N.m.
Specifications
- Pitch
- 5 mm
- Number of positions
- 2
- Rated voltage
- 300V / 250V (as listed)
- Rated current
- 10A / 18A (as listed)
- Wire range
- 22-14 AWG (2.5 mm²)
- Operating temperature
- -40 to +105 °C
- Screw torque
- 0.4 N.m
Frequently asked questions
What is the price of PCB Stacking Terminal Block 2-Pin 5mm Pitch in Egypt?
PCB Stacking Terminal Block 2-Pin 5mm Pitch currently costs 4 EGP in Egypt.
Where can I buy PCB Stacking Terminal Block 2-Pin 5mm Pitch in Egypt?
PCB Stacking Terminal Block 2-Pin 5mm Pitch is available from Future Electronics. Compare the offers above to find the best price.
How do I connect wires to this 2-pin terminal block?
Strip the wire end, insert it into the clamp opening for the position, and tighten the M2.5 screw to about 0.4 N.m. Avoid over-tightening.
What must match the board for this terminal block to fit?
The PCB footprint must have holes at the same 5 mm pitch as the block. Check the pin spacing on your board before soldering.
