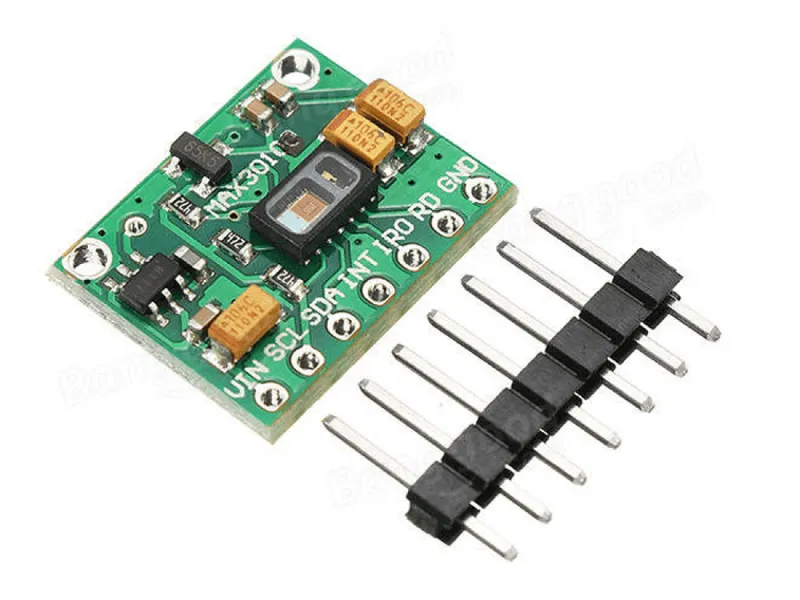

MAX30102 Pulse Oximeter and Heart-Rate Sensor Module
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The MAX30102 module combines red and infrared LEDs with a photodetector to measure heart rate and blood oxygen saturation (SpO2) from a fingertip using reflective photoplethysmography. It communicates over I2C and is used in wearable, health monitoring and biometric prototyping projects.
Specifications
- Sensor IC
- MAX30102
- Measurements
- Heart rate, SpO2
- Light sources
- Red and infrared LEDs with photodetector
- Interface
- I2C
- I2C address
- 0x57
Frequently asked questions
How do I connect it to an Arduino or ESP32?
Connect SDA and SCL to the controller's I2C pins, share ground and power the module within its marked voltage. Check the module's voltage markings, since the ESP32 uses 3.3V logic. Use a MAX30102 library to read the data.
Are the readings medical grade?
No. Hobby modules are meant for learning and experiments, not medical diagnosis. Readings need a steady finger and filtering algorithms to be meaningful.
