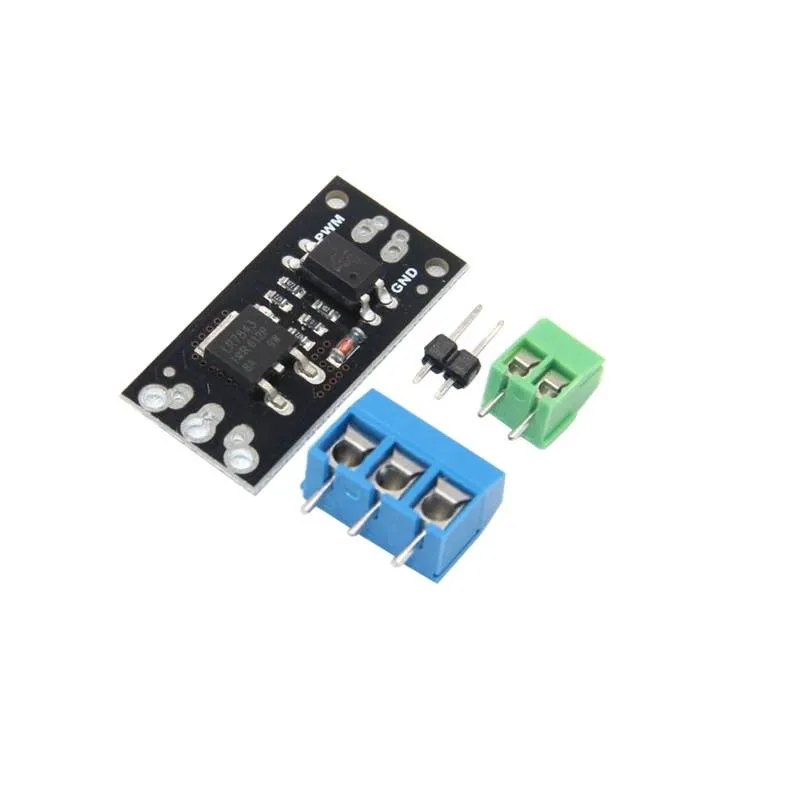

LR7843 30V N-Channel MOSFET High-Power Trigger Switch Module
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A high-power switch module built around the LR7843 N-channel logic-level MOSFET, rated for 30 V drain-source. It switches high-current DC loads from a microcontroller logic signal, accepts low-level or high-level trigger inputs, and has a very low on-resistance of about 1.7 mΩ at 10 V gate drive. Practical continuous current on the module is about 10–15 A without extra cooling.
Specifications
- MOSFET type
- N-channel, logic-level / قناة N ومنطقي المستوى
- Drain-source voltage (Vds)
- 30 V max / 30 فولت كحد أقصى
- Rds(on) at Vgs = 10 V
- about 1.7 mΩ / حوالي 1.7 ملي أوم
- Rds(on) at Vgs = 4.5 V
- about 2.5 mΩ / حوالي 2.5 ملي أوم
- Practical continuous current
- about 10–15 A without extra cooling / حوالي 10 إلى 15 أمبير بدون تبريد إضافي
- Trigger input
- Low-level or high-level logic / منطق مستوى منخفض أو مرتفع
Frequently asked questions
How do I connect it to a microcontroller?
Connect the module's signal input to a GPIO pin, share the ground between the microcontroller and the module, and connect your load between the positive supply and the module's load terminal. Select the trigger setting that matches your logic.
Can it switch inductive loads such as motors or relays?
Yes, it can switch DC loads on and off. For inductive loads like motors or relay coils, add a flyback diode across the load, and keep the load supply within the 30 V rating and the current within the module's practical limit.
