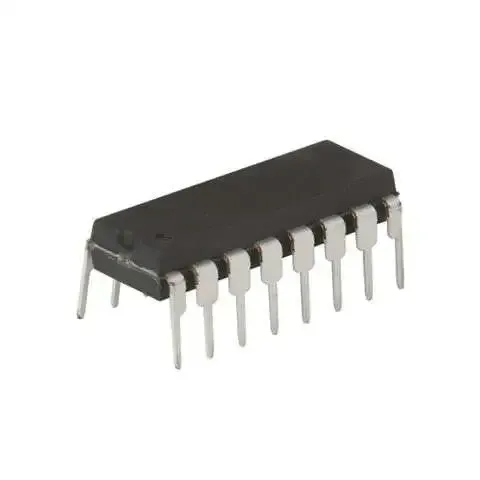

HCF4511BE BCD to 7-Segment Latch Decoder Driver DIP-16
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | HCF4511BE BCD to 7-Segment Display Driver IC DIP-16 | 12 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 12 EGP
About this product
A CMOS BCD-to-7-segment latch, decoder and driver in a DIP-16 package. It includes input latches, blanking and lamp-test functions, and drives common-cathode LED displays directly through external current-limiting resistors.
Specifications
- Function
- BCD to 7-segment latch/decoder/driver
- Technology
- CMOS
- Package
- DIP-16
- Supply voltage
- 3 V to 18 V
- Display type
- Common-cathode
- Features
- Lamp test, blanking, input latch
Frequently asked questions
What is the price of HCF4511BE BCD to 7-Segment Latch Decoder Driver DIP-16 in Egypt?
HCF4511BE BCD to 7-Segment Latch Decoder Driver DIP-16 currently costs 12 EGP in Egypt.
Where can I buy HCF4511BE BCD to 7-Segment Latch Decoder Driver DIP-16 in Egypt?
HCF4511BE BCD to 7-Segment Latch Decoder Driver DIP-16 is available from Makers Electronics. Compare the offers above to find the best price.
Can I use it with a common-anode display?
The HCF4511BE is designed for common-cathode displays. For a common-anode display, use a decoder designed for common-anode outputs or add transistor stages to invert the segment drive.
How do I wire it to a display?
Connect the BCD inputs to A–D, the outputs a–g to the display segments through current-limiting resistors, VDD to your supply (for example 5 V) and VSS to ground. If the lamp test, blanking and latch enable pins are unused, tie them to their default levels (LT and BI high, LE low) instead of leaving them floating.
