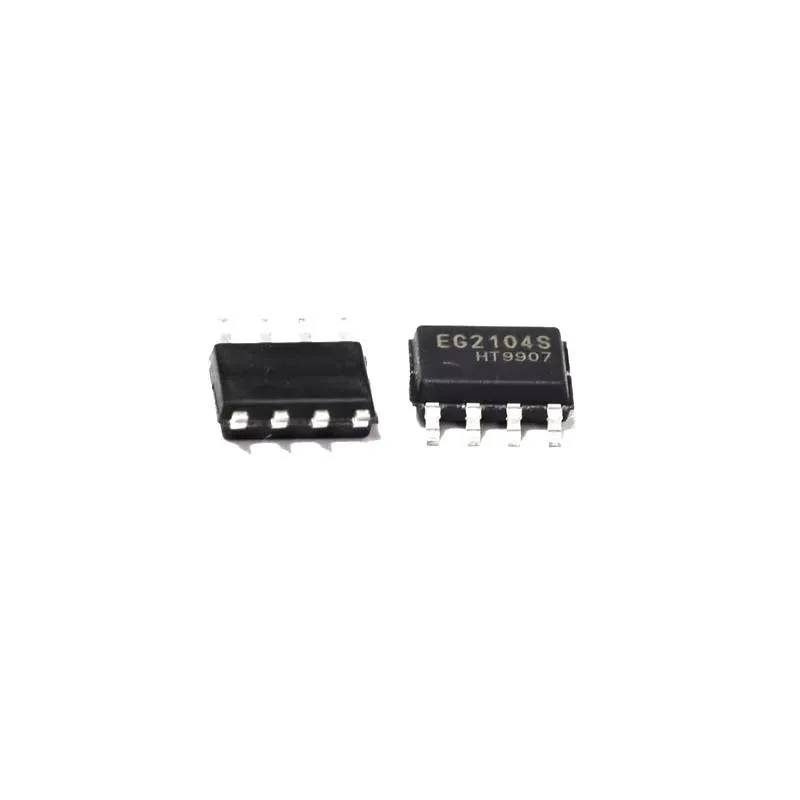

EG2104S MOSFET Gate Driver IC SOP-8
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
EG2104S is a MOSFET gate driver IC in an SOP-8 package. It takes low-level logic signals and provides the gate drive current needed to switch external power MOSFETs quickly. It is typically used in half-bridge stages of motor drivers, inverters and switching power circuits.
Specifications
- Package
- SOP-8
- Function
- MOSFET gate driver / تشغيل بوابات MOSFET
- Typical topology
- Half-bridge (high-side and low-side) / نصف جسر
Frequently asked questions
What is the EG2104S used for?
It is used to drive N-channel MOSFETs in half-bridge circuits such as motor drivers, inverters and DC-DC converters. A microcontroller PWM signal goes into the logic inputs, and the driver supplies the gate current to the power transistors.
Do I need to check the pinout and external components before wiring?
Yes. Confirm the pinout for your exact package variant in the datasheet, and follow the application circuit for the bootstrap capacitor, bootstrap diode and gate resistors. Wrong wiring or missing components can damage the driver or the MOSFETs.
