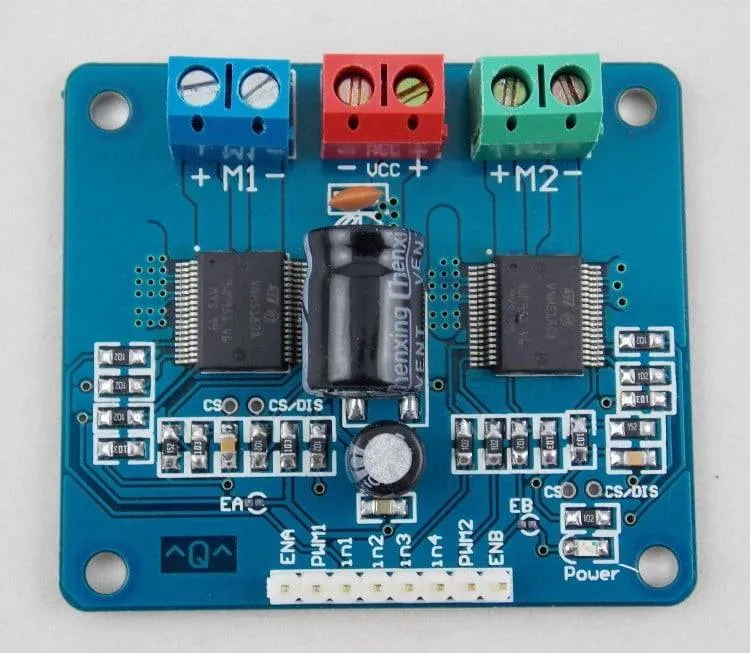

Dual VNH5180A DC Motor Driver Module, 8A, 6-24V
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A dual-channel DC motor driver module built on two VNH5180A full-bridge driver ICs, rated for up to 8 A and a 6–24 V supply. It supports PWM speed control, an enable input and braking, and can drive two DC geared motors in 4-, 6- or 8-wire configurations.
Specifications
- Driver IC
- VNH5180A (2 ICs)
- Channels
- 2
- Max output current
- 8 A
- Supply voltage
- 6–24 V
- Control
- PWM with enable
- Braking
- Yes
- PCB size
- 48 × 55 mm
Frequently asked questions
How do I connect it to an Arduino?
Connect the PWM pins for speed, the direction pins and the enable pin to the microcontroller. Power the motor from a separate 6–24 V supply and connect the grounds together so the logic and motor share a reference.
Can it drive a 12 V motor?
Yes, a 12 V motor is within the 6–24 V supply range. Make sure the motor's stall current stays within the module's 8 A rating.
