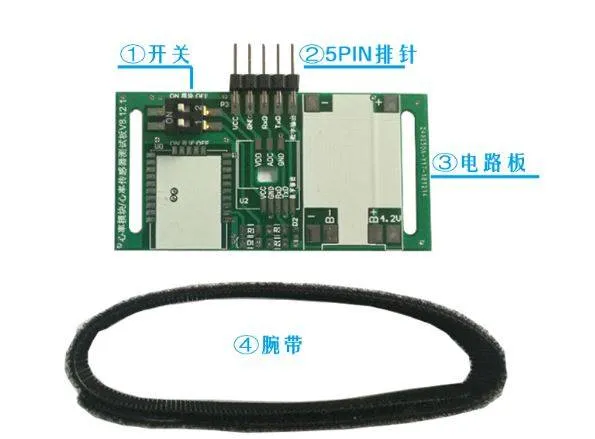

DHRM UART TTL Digital Heart Rate Pulse Sensor Module
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
Digital heart rate sensor that uses reflective light detection to output real-time pulse signals, heart rate values and waveform data over a UART TTL serial interface. The host can read hardware and software versions, query or change the baud rate and output mode, and start or stop data transmission. Suited to fitness, wearable and learning prototypes.
Specifications
- Interface
- UART TTL serial
- Detection method
- Reflective (light detection)
- Outputs
- Heart rate value, real-time pulse signal, waveform digital values
- Configurable settings
- Baud rate and output mode
- Data control
- Start and stop transmission
Frequently asked questions
Can I connect it directly to a 3.3 V board?
Check the module's operating voltage and TTL logic level in its datasheet before connecting it to a 3.3 V board such as ESP32. Use a level shifter if the output level does not match your board.
How do I start reading heart rate data?
Send the module's serial command to start transmission, then parse the returned frames on your microcontroller. The exact command set and frame format are defined in the vendor's protocol document.
