CD4067BM 16-Channel Analog Multiplexer / Demultiplexer Module
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Future Electronics | CD4067BM 16-Channel Analog Multiplexer Module | 35 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 35 EGP
About this product

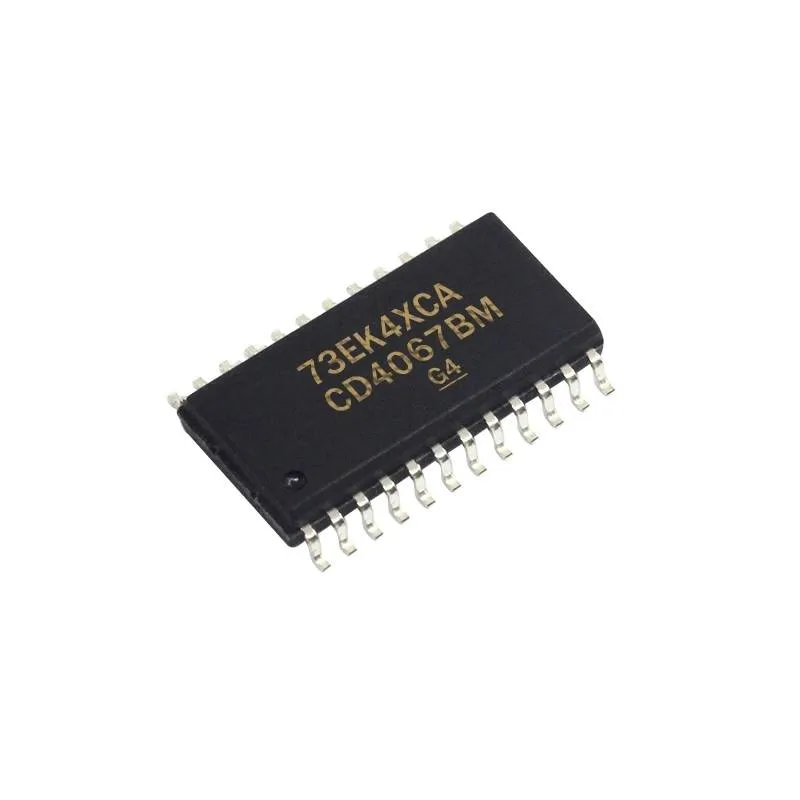

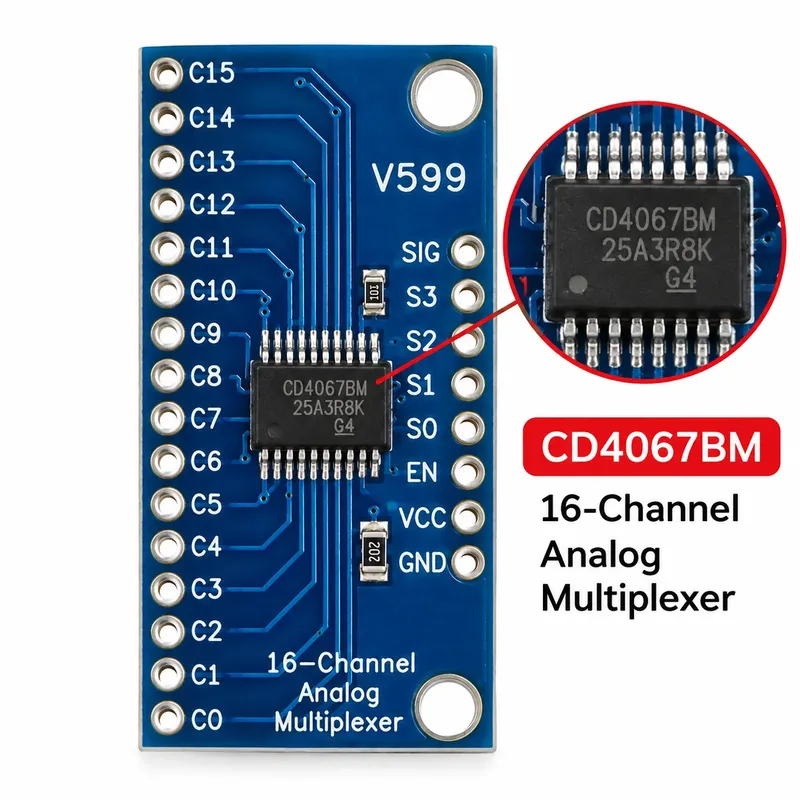

A breakout module based on the CD4067BM CMOS analog multiplexer, which routes one of 16 analog or digital channels to a single common signal line. Four select pins S0 to S3 choose the channel and the EN pin enables the chip. It lets one microcontroller input or output pin read or drive many signals.
Specifications
- Channels
- 16 (16:1 multiplexer/demultiplexer) / 16 قناة
- Control inputs
- S0, S1, S2, S3
- Enable
- EN
- Supply voltage
- 3 to 18 V (recommended) / من 3 إلى 18 فولت (موصى به)
- Operating temperature
- -55 °C to +125 °C / من -55 إلى +125 درجة مئوية
- Package
- 24-pin SOIC / غلاف SOIC ذو 24 طرفًا
Frequently asked questions
What is the price of CD4067BM 16-Channel Analog Multiplexer / Demultiplexer Module in Egypt?
CD4067BM 16-Channel Analog Multiplexer / Demultiplexer Module currently costs 35 EGP in Egypt.
Where can I buy CD4067BM 16-Channel Analog Multiplexer / Demultiplexer Module in Egypt?
CD4067BM 16-Channel Analog Multiplexer / Demultiplexer Module is available from Future Electronics. Compare the offers above to find the best price.
How do I select a channel from an Arduino?
Set S0 to S3 to the 4-bit binary value of the channel number (0 to 15), pull EN LOW to enable the chip on most breakout modules, connect each sensor to its channel pin and read the common SIG pin with analogRead or digitalRead.
Can it pass analog signals as well as digital ones?
Yes, the multiplexer passes analog and digital signals in either direction. Keep every signal within the supply rails, so use a 3.3 V supply for a 3.3 V microcontroller and a 5 V supply for a 5 V board.
