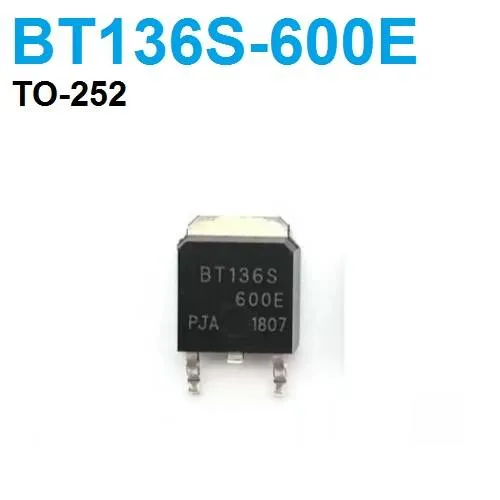

BT136S-600E Logic-Level Triac 4A 600V SMD TO-252
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The BT136S-600E is a logic-level triac in a TO-252 (DPAK) surface-mount package, rated for 4A RMS on-state current and 600V repetitive peak off-state voltage. It is used to switch AC loads such as lamps, fans and small motors when controlled by a microcontroller or logic signal. Gate drive, heat sinking and mains isolation must be considered in the final design.
Specifications
- Type
- Triac, logic level
- On-state current (RMS)
- 4 A
- Repetitive peak off-state voltage
- 600 V
- Package
- TO-252 (DPAK) SMD
- Mounting
- Surface mount
Frequently asked questions
Can I drive it directly from a 3.3V or 5V microcontroller pin?
It is a logic-level triac, so it can be triggered from low-voltage logic, but a series gate resistor is recommended. For mains loads, use an optocoupler-based driver to isolate the microcontroller from the mains side.
Is it suitable for 220V or 230V mains loads?
Its 600V rating covers 230V AC mains with margin, but the 4A RMS current limit applies. Proper fusing, heat sinking, isolation and a snubber for inductive loads are needed in a real design.
