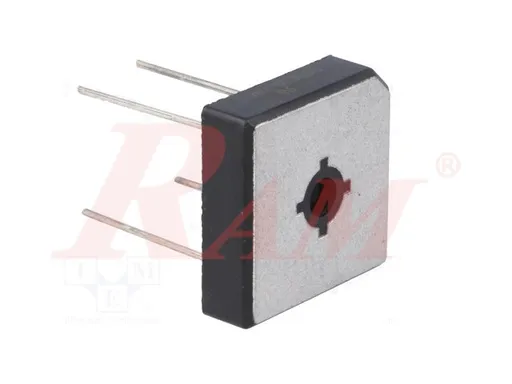

Bridge Rectifier 35A Isolated Square Package
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A 35 A bridge rectifier in an isolated square package, used to convert AC into pulsating DC in power supplies, battery chargers and motor drives. The isolated case allows it to be mounted on a heatsink without electrical contact to the bridge's internal diodes.
Specifications
- Rated current
- 35 A
- Case
- Isolated
- Shape
- Square
Frequently asked questions
How is it wired in a basic rectifier circuit?
The two AC terminals connect to the AC source, typically a transformer secondary. The positive and negative DC terminals feed the filter capacitor and load. Check the voltage rating printed on the body before use.
Does it need a heatsink?
At currents close to its rating, yes. The isolated case allows it to be mounted on a common heatsink without shorting the diodes to it, which simplifies the mechanical layout.
