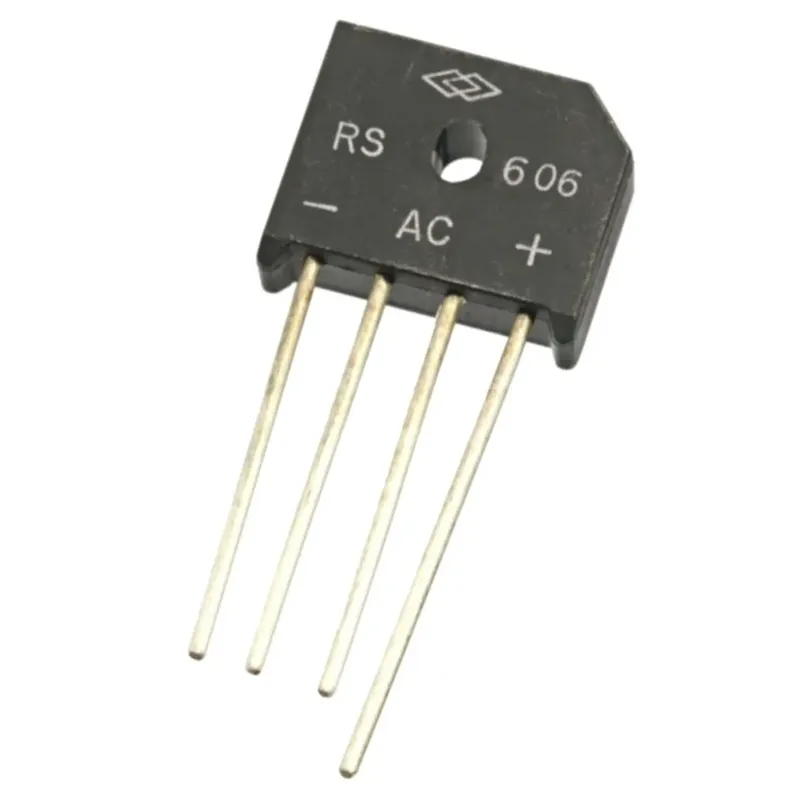

RS606 Bridge Rectifier 6A 800V (RS-6 Package)
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | RS606 Bridge Rectifier 6A 800V | 10 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 10 EGP
About this product
A 6A, 800V single-phase bridge rectifier in the RS-6 package for PCB mounting. It converts AC to pulsating DC and is rated for a 250A surge current and an operating range of -55°C to +125°C. The listing notes UL recognition and low forward voltage drop.
Specifications
- Max forward current
- 6 A
- Peak reverse voltage
- 800 V
- Surge current
- 250 A
- Package
- RS-6
- Operating temperature
- -55 °C to +125 °C
- Mounting
- PCB mount
- Type
- Single-phase bridge rectifier
Frequently asked questions
What is the price of RS606 Bridge Rectifier 6A 800V (RS-6 Package) in Egypt?
RS606 Bridge Rectifier 6A 800V (RS-6 Package) currently costs 10 EGP in Egypt.
Where can I buy RS606 Bridge Rectifier 6A 800V (RS-6 Package) in Egypt?
RS606 Bridge Rectifier 6A 800V (RS-6 Package) is available from Makers Electronics. Compare the offers above to find the best price.
Is the RS606 suitable for mains rectification?
Its 800V peak reverse voltage gives margin over the peak of 220VAC mains. Add proper filtering and isolation for mains circuits, and make sure the circuit is designed for safe operation.
Does it need a heatsink?
At low currents it usually runs without one, but at higher currents heat builds up in the body. Keep the current well below 6A in an open layout, and add a heatsink or copper area if the body becomes hot.
