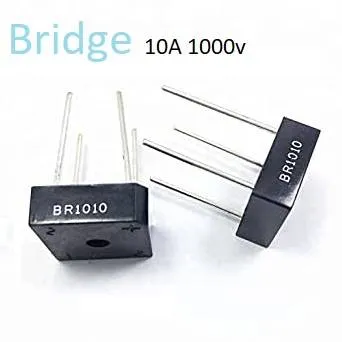

BR1010 Bridge Rectifier Module 10A 1000V
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A full-wave bridge rectifier rated for 10 A and 1000 V, used to convert AC into pulsating DC in power supplies and adapter circuits. The listing gives a forward voltage drop of 1.1 V per element and a maximum reverse current of 5 µA. It is typically paired with a filter capacitor to smooth the output.
Specifications
- Peak reverse voltage (Vrrm)
- 1000 V
- Max RMS bridge voltage (Vrms)
- 700 V
- Max DC blocking voltage (Vdc)
- 1000 V
- Average forward rectified current (Io)
- 10 A
- Maximum reverse current (Ir)
- 5 µA
- Forward voltage drop per element (Vf)
- 1.1 V
Frequently asked questions
Can it rectify 220 V mains?
The listed RMS bridge voltage is 700 V, which is well above the 220 V AC RMS mains voltage. For high-current use, mount it on a heatsink and add a filter capacitor on the DC output.
How do I identify the AC and DC terminals?
A bridge rectifier has two AC input terminals and two DC output terminals marked + and -. Check the markings on the body before wiring the module into a circuit.
