Analog Joystick Breakout Module with Push Button
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | JOYSTICK BREAKOUT MODULE | 85 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 85 EGP
About this product

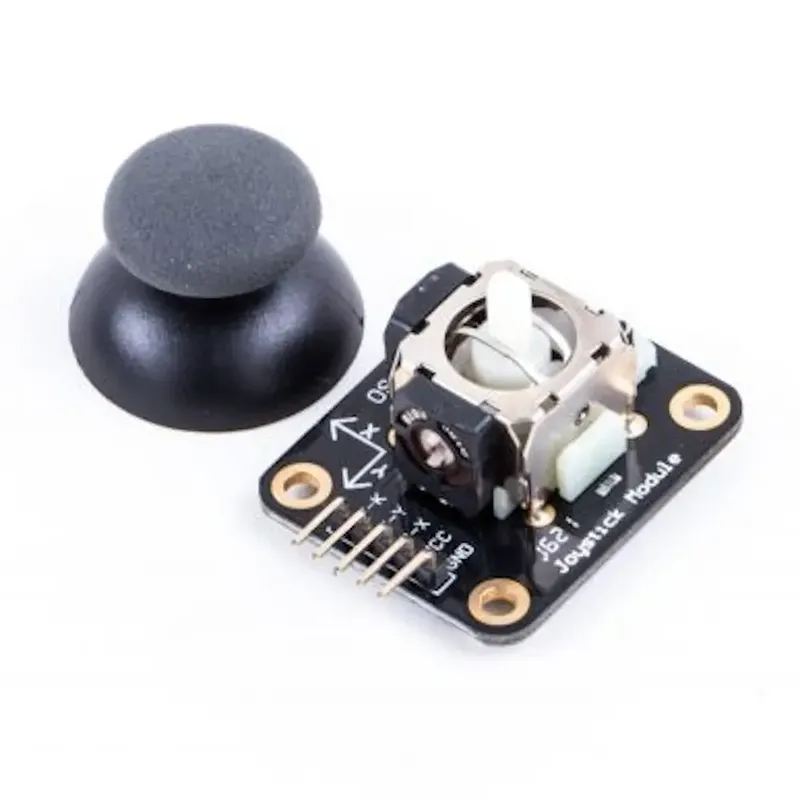

An analog joystick breakout module with two potentiometers of about 10 kΩ each, one per axis, plus a select button that is activated by pressing the stick down. It is commonly used for game controllers, robot control and menu navigation in microcontroller projects.
Specifications
- Joystick type
- Analog (two potentiometers)
- Potentiometer per axis
- ~10 kΩ
- Pins
- 5 (VCC, GND, X, Y, Button)
- Supply voltage
- 5 V
- Select button
- Activated by pressing the stick down
Frequently asked questions
What is the price of Analog Joystick Breakout Module with Push Button in Egypt?
Analog Joystick Breakout Module with Push Button currently costs 85 EGP in Egypt.
Where can I buy Analog Joystick Breakout Module with Push Button in Egypt?
Analog Joystick Breakout Module with Push Button is available from UGE. Compare the offers above to find the best price.
How do I connect it to an Arduino?
Connect VCC to 5V and GND to GND, read the X and Y outputs on analog pins, and connect the Button pin to a digital input with the internal pull-up enabled. Test the button logic on your board, since the active level depends on wiring.
Can I use it with a 3.3 V board such as ESP32?
The module is specified for a 5 V supply, so its X and Y outputs can reach up to that level. On 3.3 V boards, power the module from 3.3 V so the outputs stay within the ADC range, or use a voltage divider.
