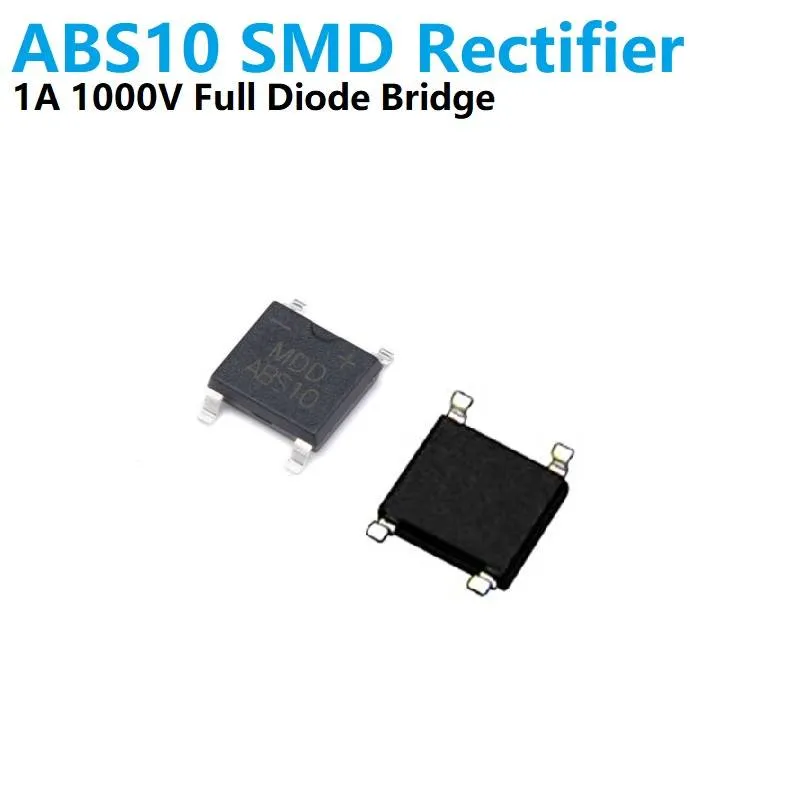

ABS10 SMD Full-Wave Bridge Rectifier 1A 1000V
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A surface-mount full-wave bridge rectifier in the ABS10 package, rated at 1 A and 1000 V reverse voltage. It converts AC into pulsating DC and is used in small power supplies, adapters and AC-to-DC input stages. Its maximum forward voltage is 1.1 V and it operates from -55 °C to +125 °C.
Specifications
- Package
- ABS (SMD)
- Type
- Full-wave bridge rectifier
- Current rating
- 1 A
- Reverse voltage
- 1000 V
- Max forward voltage (VF)
- 1.1 V
- Operating temperature
- -55 °C to +125 °C
Frequently asked questions
How do I connect the AC input and DC output?
The two AC pins accept the transformer or mains supply, and the two remaining pins give the rectified output, marked + and -. Add a filter capacitor on the DC side to smooth the pulsating output.
Does it need a heatsink at 1 A?
The listing does not give thermal resistance data. For continuous 1 A operation, provide enough copper area on the PCB for heat dissipation and verify the temperature rise on your board.
