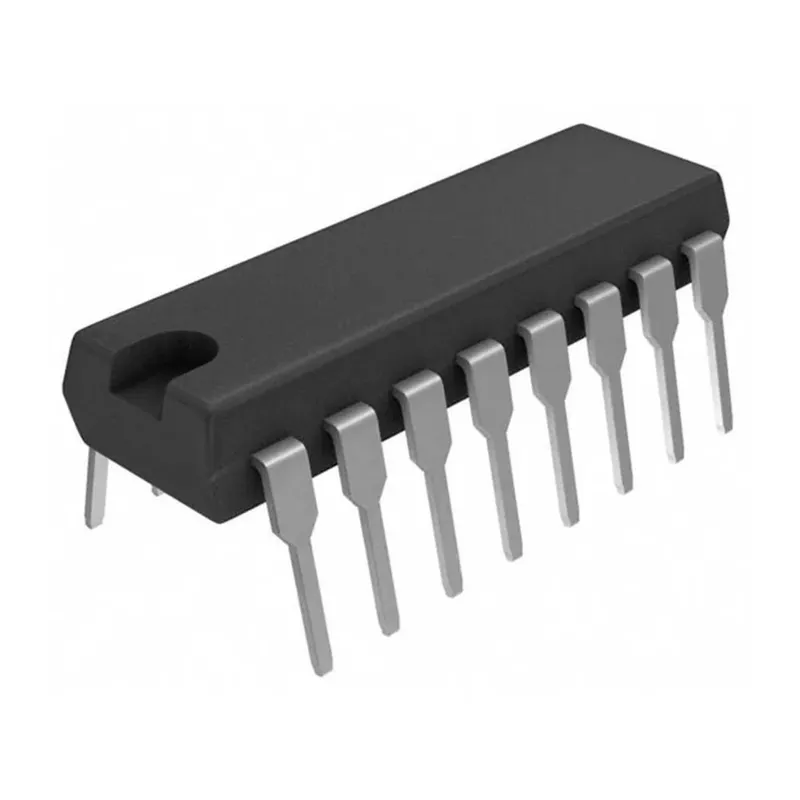

74HC192 Presettable Decade (BCD) Up/Down Counter DIP-16
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Future Electronics | 74HC192 ( Presettable Synchronous Counter) | 15 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 15 EGP
About this product
The 74HC192 is a presettable synchronous decade (BCD) up/down counter that counts from 0 to 9 in both directions. It has parallel preset inputs, separate count-up and count-down clocks, and carry and borrow outputs for cascading stages. It is commonly used with a BCD-to-7-segment decoder for numeric displays and in decimal counting circuits.
Specifications
- Function
- Presettable synchronous decade (BCD) up/down counter
- Count range
- 0 to 9
- Supply voltage
- 2 V to 6 V
- Propagation delay
- 37 ns at 6 V
- Output current
- 5.2 mA at 6 V
- Operating temperature
- -40 °C to +125 °C
- Package
- DIP-16
Frequently asked questions
What is the price of 74HC192 Presettable Decade (BCD) Up/Down Counter DIP-16 in Egypt?
74HC192 Presettable Decade (BCD) Up/Down Counter DIP-16 currently costs 15 EGP in Egypt.
Where can I buy 74HC192 Presettable Decade (BCD) Up/Down Counter DIP-16 in Egypt?
74HC192 Presettable Decade (BCD) Up/Down Counter DIP-16 is available from Future Electronics. Compare the offers above to find the best price.
How is the 74HC192 different from the 74HC193?
The 74HC192 counts in decimal (BCD, 0 to 9) and wraps after 9, while the 74HC193 counts in 4-bit binary (0 to 15). Choose the 192 for decimal displays and the 193 for binary counting.
How do I show the count on a 7-segment display?
Connect the outputs Q0 to Q3 (pins 3, 2, 6 and 7) to a BCD-to-7-segment decoder such as the 7447, then drive the display segments from the decoder outputs. Use current-limiting resistors on the segments.
