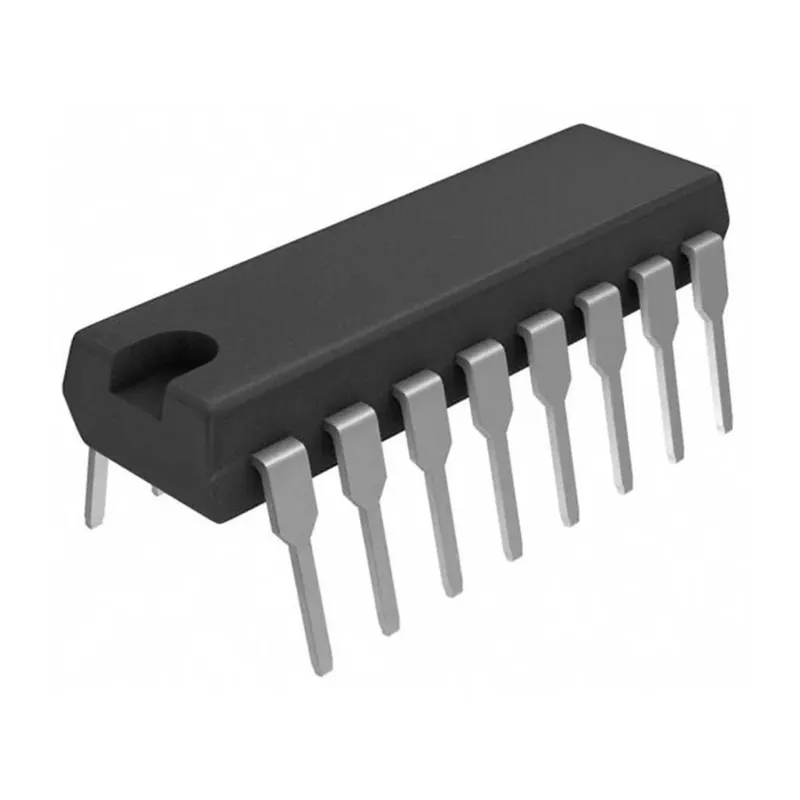

74HC165 8-Bit Parallel-In Serial-Out Shift Register
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Future Electronics | 74HC165 (8-Bit Parallel-in/Serial out Shift Register) | 12 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 12 EGP
About this product
The 74HC165 is an 8-bit shift register that loads data from parallel inputs D0 to D7 asynchronously when PL is LOW, then shifts it out serially on each clock pulse while PL is HIGH. It provides complementary serial outputs Q7 and Q7-bar, and devices can be cascaded by connecting Q7 to the DS input of the next stage. It is a practical way to read many digital inputs using only a few microcontroller pins.
Specifications
- Type
- 8-bit parallel-in, serial-out shift register
- Logic family
- 74HC (CMOS)
- Parallel load
- Asynchronous, active LOW (PL)
- Serial outputs
- Q7 and Q7-bar (complementary)
- Clock
- Positive-going edge
- Supply voltage
- 2 V to 6 V
Frequently asked questions
What is the price of 74HC165 8-Bit Parallel-In Serial-Out Shift Register in Egypt?
74HC165 8-Bit Parallel-In Serial-Out Shift Register currently costs 12 EGP in Egypt.
Where can I buy 74HC165 8-Bit Parallel-In Serial-Out Shift Register in Egypt?
74HC165 8-Bit Parallel-In Serial-Out Shift Register is available from Future Electronics. Compare the offers above to find the best price.
How do I read 8 switches with the 74HC165?
Connect each switch to a parallel input D0 to D7 with a pull-up or pull-down resistor. Pulse PL LOW to load the switch states, then set PL HIGH and clock the bits out one at a time from Q7.
Can I chain several 74HC165 devices together?
Yes. Connect Q7 of one device to the DS input of the next, and share the clock and PL lines across all devices. The data then appears as one longer serial stream.
