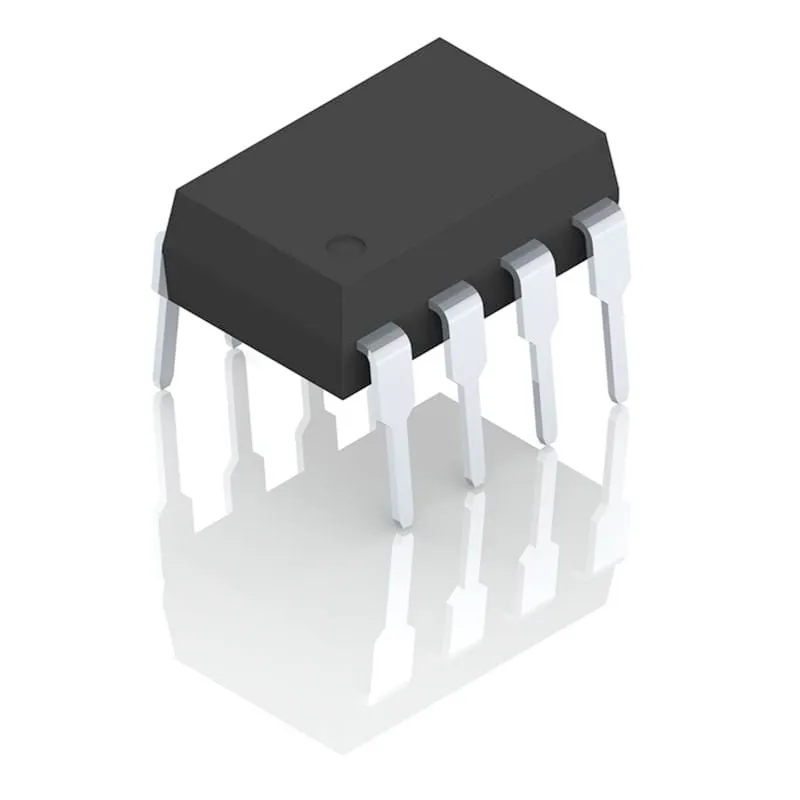

6N138 Darlington Output Optocoupler DIP-8
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | 6N138 Optocoupler Dip-8 | 30 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 30 EGP
About this product
The 6N138 is a DIP-8 optocoupler with a high-gain Darlington output and low input current. It isolates logic signals between circuits operating at different voltages or grounds, with 5300 VRMS isolation, so it suits interfacing microcontrollers with higher-voltage or noisy circuits.
Specifications
- Package
- DIP-8
- Isolation voltage
- 5300 VRMS
- Output type
- Darlington transistor, high gain
- Input current
- Low input current
Frequently asked questions
What is the price of 6N138 Darlington Output Optocoupler DIP-8 in Egypt?
6N138 Darlington Output Optocoupler DIP-8 currently costs 30 EGP in Egypt.
Where can I buy 6N138 Darlington Output Optocoupler DIP-8 in Egypt?
6N138 Darlington Output Optocoupler DIP-8 is available from Makers Electronics. Compare the offers above to find the best price.
Which pins are the input and output?
The input LED uses pin 2 (anode) and pin 3 (cathode). The output uses pin 6 (output), pin 5 (GND) and pin 8 (VCC). Pin 7 (base) is normally left unconnected. Verify against the datasheet for your exact revision.
Does the output need a pull-up resistor?
Yes. The Darlington output acts as a switch to ground, so a pull-up resistor from VCC (pin 8) to the output (pin 6) is required to produce a logic-high level when the LED is off.
