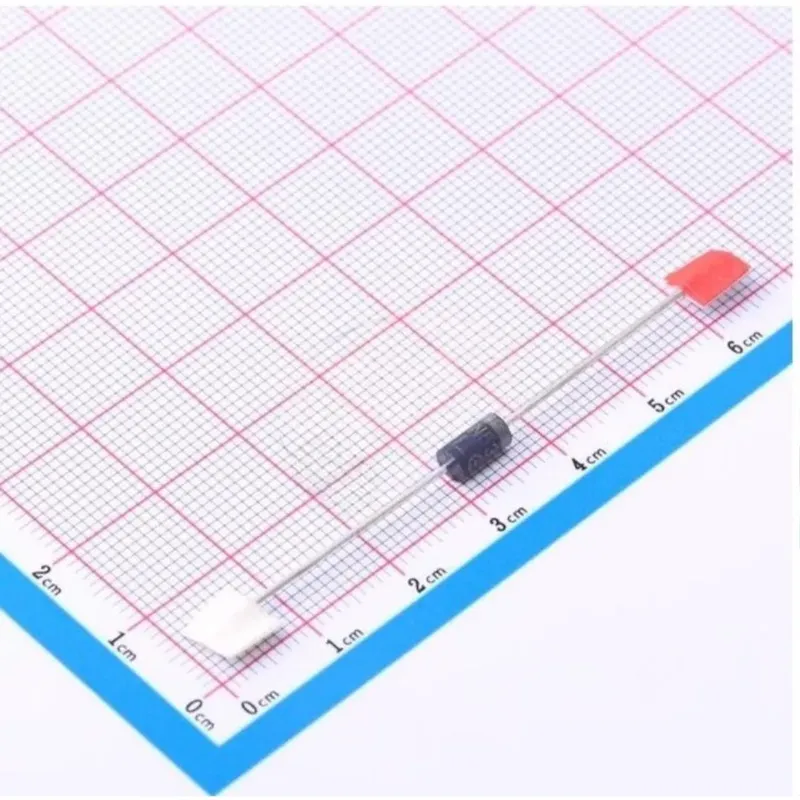

Zener Diode 2.4V 0.5W (1/2W)
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A 2.4 V zener diode rated 1/2 W (0.5 W). It is used for voltage reference and simple shunt regulation, and it has a reverse leakage current below 0.1 µA. The storage temperature range is -65 to 175 °C.
Specifications
- Zener voltage
- 2.4 V
- Power rating
- 1/2 W (0.5 W)
- Reverse leakage current
- < 0.1 µA
- Storage temperature
- -65 to 175 °C
Frequently asked questions
How do I wire it as a voltage reference?
Connect it in reverse bias, cathode to the positive rail and anode to ground, through a series resistor. The resistor limits the current, and the diode holds about 2.4 V across its terminals.
What is the maximum current it can handle?
At full rated power the limit is about 0.5 W divided by 2.4 V, which is roughly 200 mA. Choose the series resistor so the current stays below that and the diode does not overheat.
