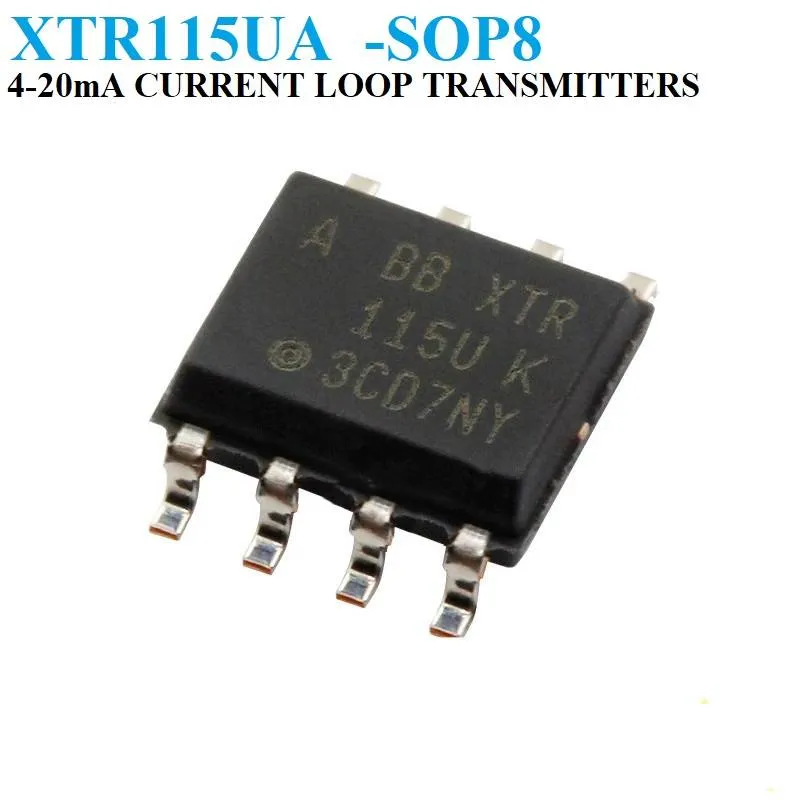

XTR115UA 4-20 mA Current Loop Transmitter, 2.5 V Reference, SOP-8
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
XTR115UA is a precision current-output converter that transmits analog 4-20 mA signals over an industry-standard current loop. It is a building block for smart sensors and transmitters, with an on-chip 5 V regulator and a 2.5 V precision reference.
Specifications
- Output
- 4-20 mA current loop
- Reference voltage
- 2.5 V
- Internal regulator
- 5 V
- Quiescent current
- 200 µA
- Loop supply voltage
- 7.5 V to 36 V
- Package
- SOP-8 (SMD)
Frequently asked questions
How is the output current controlled on the XTR115?
The output current follows the input signal current on the IIN pin. Per the datasheet, an input current of 40 to 200 µA maps to the 4 to 20 mA output range.
What loop supply voltage does the XTR115 need?
The datasheet specifies a loop supply of 7.5 V to 36 V. The on-chip 5 V regulator can also power small external circuitry, subject to the datasheet limits.
