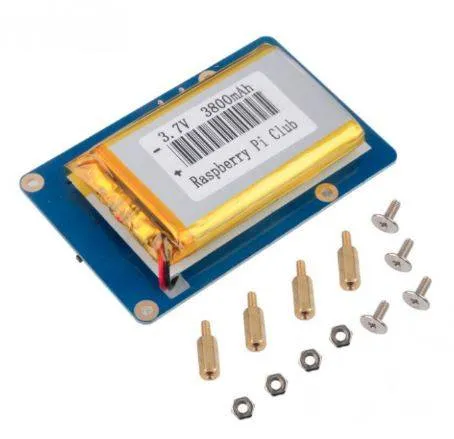

UPS Lithium Battery Expansion Board with Switch for Raspberry Pi
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A HAT-sized UPS expansion board that keeps a Raspberry Pi running from a lithium-ion battery when mains power is off. It integrates a Li-ion charger IC and a power-management chip, and provides a 5.1 V output rated at 1.8 A with two USB outputs, one for the Pi and one for the LCD. The listing states up to 9 hours offline on the Pi 3 Model B.
Specifications
- Output voltage (no load)
- 5.1 V ±0.1 V
- Output current
- 1.8 A
- USB outputs
- 2 (Raspberry Pi and LCD)
- Battery type
- Lithium-ion (Li-ion)
- Offline runtime (per listing)
- Up to 9 hours on Raspberry Pi 3 Model B
- Form factor
- Raspberry Pi HAT size
- Switch
- Built-in power switch
Frequently asked questions
Does it work with Raspberry Pi 4 or Pi 5?
The board is designed especially for the Raspberry Pi 3 Model B according to the listing. Pi 4 and Pi 5 draw more current at peak, so confirm that the 1.8 A output is sufficient for your model.
What battery do I need?
The listing describes a lithium-ion battery system, but the battery capacity is not fully shown in the listing text. Confirm the supported battery type and capacity before connecting.
