UGN3503 Linear Hall-Effect Sensor IC (Magnetic Sensor)
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product

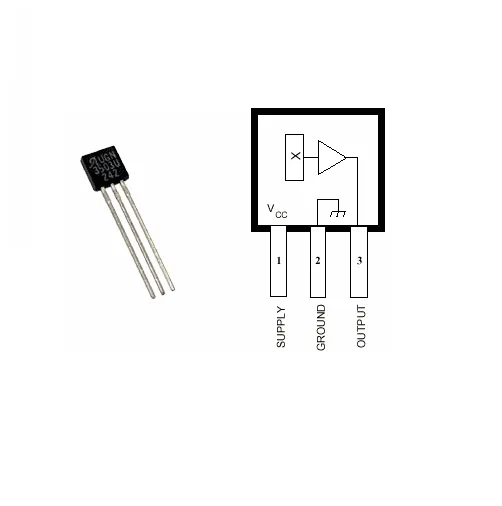

The UGN3503 is a linear Hall-effect sensor IC whose analog output changes in proportion to the strength of the magnetic field. It is used for magnetic field measurement, position and proximity sensing, and current sensing in motors, encoders and hobby projects.
Specifications
- Type
- Linear Hall-effect sensor IC
- Output
- Analog, proportional to magnetic field
- Sensing principle
- Hall effect
- Datasheet
- Available
Frequently asked questions
How do I wire the UGN3503 to a microcontroller?
Power the sensor from the supply specified in its datasheet and connect the analog output to an ADC input. Verify the pin order, supply voltage and sensitivity in the Allegro datasheet before connecting it.
Can it detect simple on/off magnet presence?
It is a linear sensor, so its output varies with field strength rather than switching. For on/off detection, read the analog output and apply a threshold in software or use a comparator.
