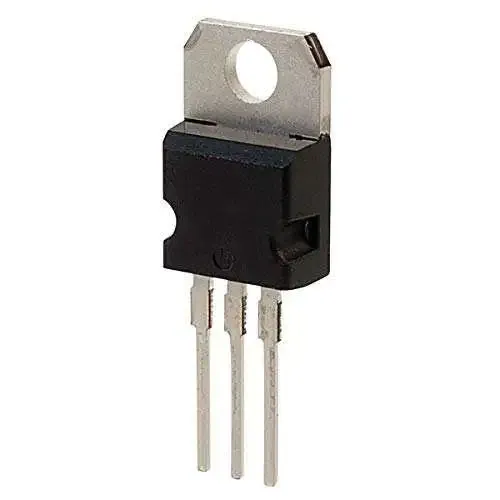

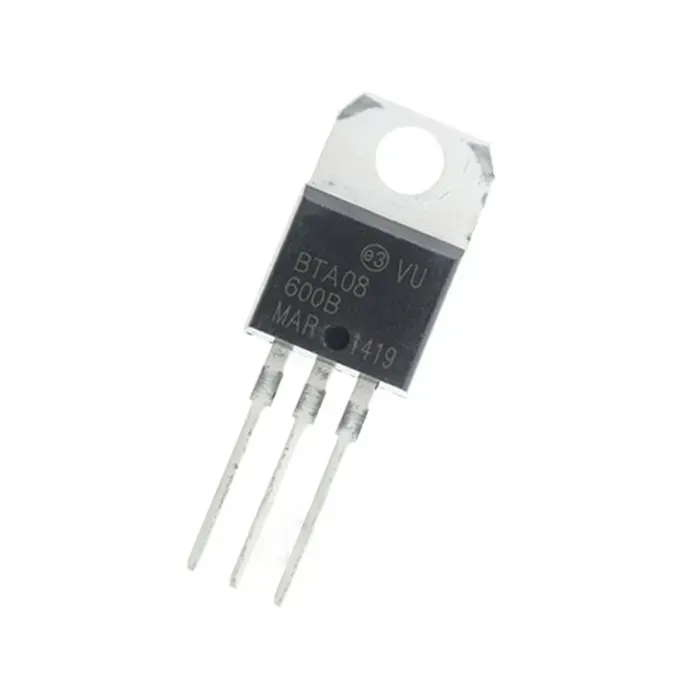

Triac BTA08 8A 600V TO-220
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
An 8 A, 600 V bidirectional triac from ON Semiconductor in a TO-220 package, used to switch AC loads with a small gate pulse. It is suited to lamp dimmers, small fan control and low-power AC heater switching. Add a snubber for inductive loads.
Specifications
- Type
- Triac (bidirectional AC switch)
- Max RMS on-state current
- 8 A
- Repetitive peak off-state voltage
- 600 V
- Package
- TO-220
- Pinout
- 1 = MT1, 2 = MT2, 3 = Gate
Frequently asked questions
How do I wire the BTA08 to control an AC load?
Connect MT1 to the load and the AC supply, MT2 to the other side of the AC line, and drive the Gate (pin 3) with a trigger signal referenced to MT1 through an isolated circuit.
Is 600 V enough for 220 V mains?
Yes, the 600 V rating gives a safe margin above the 220 V RMS mains voltage. Always choose a current rating above your load current, with some margin.
