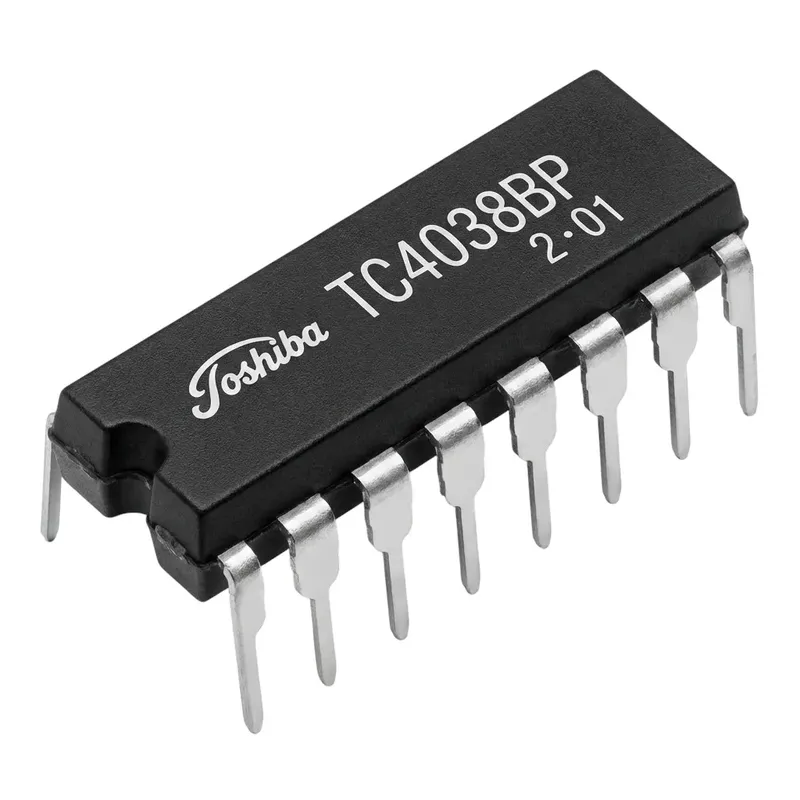

Toshiba TC4038BP Triple Serial Adder IC DIP-16
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | Toshiba 4038 Triple Serial Adder IC DIP-16 | 12 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 12 EGP
About this product
The Toshiba TC4038BP is a CMOS triple serial adder in a 16-pin DIP package. It adds three serial bit streams using negative logic and a falling-edge clock, and is used in digital arithmetic and logic projects. Operating range is 3 to 18 V.
Specifications
- Part number
- TC4038BP
- Function
- Triple serial adder (negative logic)
- Clock trigger
- Falling edge
- Supply voltage range
- 3 to 18 V
- Package
- DIP-16
- Technology
- CMOS
Frequently asked questions
What is the price of Toshiba TC4038BP Triple Serial Adder IC DIP-16 in Egypt?
Toshiba TC4038BP Triple Serial Adder IC DIP-16 currently costs 12 EGP in Egypt.
Where can I buy Toshiba TC4038BP Triple Serial Adder IC DIP-16 in Egypt?
Toshiba TC4038BP Triple Serial Adder IC DIP-16 is available from Makers Electronics. Compare the offers above to find the best price.
How does the serial adder work?
It processes bits one at a time on each clock cycle, so the three input bit streams are summed serially rather than in parallel. The output is updated on each falling clock edge, so the clock must be wired and timed accordingly.
What supply voltage should I use?
Power the IC within its 3 to 18 V range, connecting VDD and VSS as shown in the Toshiba datasheet. Unused CMOS inputs should not be left floating, so tie them to a defined logic level.
