TM4C123GH6 Dev Board with CMSIS-DAP Debugger and CAN Transceiver
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product

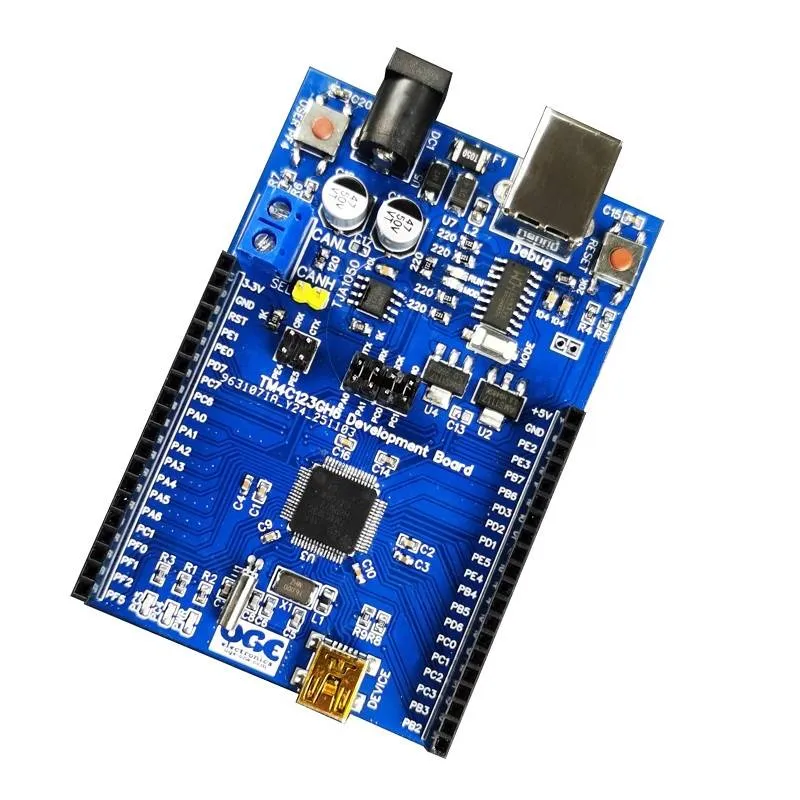

This development board is built around the Texas Instruments TM4C123GH6 ARM Cortex-M4F microcontroller. It includes an onboard CMSIS-DAP debugger, a CAN transceiver and a USB Type-B connector, making it suitable for embedded development, UART work and CAN bus projects.
Specifications
- Microcontroller
- TM4C123GH6 (Texas Instruments)
- Core
- ARM Cortex-M4F
- Maximum clock
- 80 MHz
- Flash memory
- 256 KB
- SRAM
- 32 KB
- Onboard debugger
- CMSIS-DAP
- CAN
- Onboard transceiver
- USB connector
- Type-B
Frequently asked questions
Which tools can use the onboard CMSIS-DAP debugger?
Tools that support CMSIS-DAP, such as Keil MDK and OpenOCD, can use the onboard debugger for programming and debugging. Check the board documentation for the exact connection and setup steps.
Do I need an external CAN transceiver?
No, the listing states a CAN transceiver is onboard. You still need to terminate the CAN bus at each end with resistors as your network design requires.
