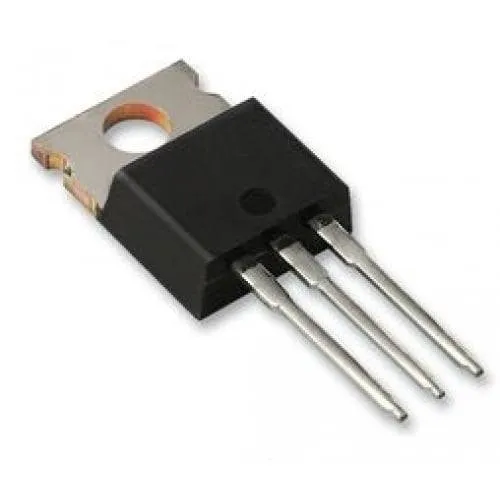

TIP34 PNP Power Driving Transistor TO-220
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The TIP34 is a PNP power driving transistor in a TO-220 package, intended for higher-power driver and output stages. It is the complement of the TIP33 NPN device and is used in linear amplifiers, regulator pass stages and motor or load driving. Mount it on a heatsink for rated power operation.
Specifications
- Transistor type
- PNP
- Package
- TO-220
- Complement of
- TIP33 (NPN)
- Max collector current (Ic)
- 10 A
- Max power dissipation (Ptot)
- 80 W
Frequently asked questions
Can the TIP34 be used in a linear regulator pass stage?
Yes, it can be used as a series pass element in a linear regulator for higher currents, provided it is mounted on a suitable heatsink and the dissipation (voltage drop times current) stays within limits.
Which pin is the base on a TIP34?
In the TO-220 package the TIP34 is usually Base, Collector, Emitter from left to right with the front face toward you and leads pointing down. The tab is connected to the collector. Confirm on the datasheet before wiring.
